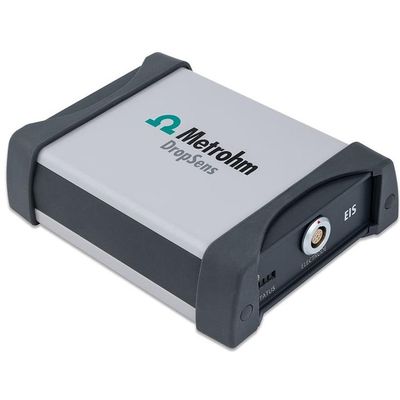

Metrohm - Model µStat-i 400s - STAT-I-400S -Potentiostat/Galvanostat/Impedance Analyzer (EIS)

• Current accuracy: ≤0.5 % of current range at 100 nA to 10 mA
• Current resolution: 0.1 % of current output range
• Dimensions in mm (W/H/D): 100 x 36 x 132
• External inputs/outputs: Iout, Eout ; 2 Analog inputs ; 1 Analog output ; 2 Digital input/outputs ; TX, RX, RTS signals for RS232 connection
• Maximum current in Ampère: ±40 mA
• Maximum number of channels: 1
• Maximum number of WE sharing AUX and REF: 1
• Measured current resolution: 0.025 % of current range (1 pA on lowest current range)
• Measured potential resolution: 0.012 % of potential range
• Multichannel instrument: NO
• Number of current ranges: 8
• Number of current ranges remarks: ±1 nA to ±10 mA
• Operating modes: Potentiostat ; Potentiostat ; Galvanostat ; EIS
• PC interface: Bluetooth® ; USB
• Potential accuracy: ±0.2%
• Potential range in volt: ±4 V
• Potential resolution: 1 mV
• Power: Li-ion Battery (2300 mAh) ; USB ; DC charger adaptor compatible (5 V)
• Weight of the instrument in kg: 0.54

Frequency range 1 mHz to 1 MHz
