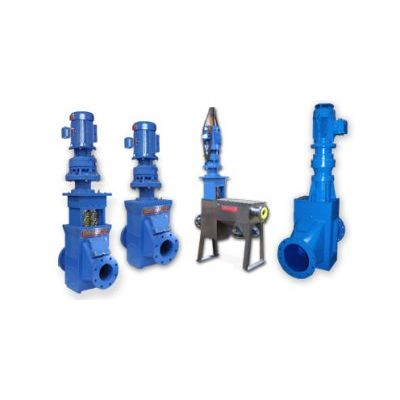

Taskmaster - Powerful Inline Grinders
Taskmaster Inline Grinders employ a powerful twin shaft mechanism to reduce solids in sludge, slurry and sewage pipelines. These versatile, processors reduce such materials as rags, plastics, wood, debris, tampons, sanitary napkins and more. They are invaluable in plant operations worldwide keeping pipelines flowing, reducing pump downtime and protecting dewatering equipment such as centrifuges, filter presses and more.
These grinders are available for pipe sizes from 4" through 30" pipe sizes.
TM8500 Series
The TASKMASTER TM8500 series inline grinders feature a drop-in housing for easy maintenance, 2" hex shafts, heavy-duty mechanical seals with tungsten carbide seal faces and cutter cartridge technology. With cutter cartridges, individual cutters and spacers are replaced by rugged one-piece elements that incorporate 6 cutters and 6 spacers for less components, no stack loosening and the elimination of cutter stack retightening (required by competing units). These units are made for pipe sizes from 4" through 10".
TM1600 series
Taskmaster TM1600 series grinders are heavy-duty inline disintegrators built for 12" ANSI flanged systems and larger. These rugged processors are ideal for high flow rates and extremely heavy institutional solids. These units feature 2-3/4" hexagonal shafting, up to 20HP motor and drive, a variety of cutter profiles and much more. They are available for 12" - 18" pipe sizes in carbon as well as stainless steel construction.
Each grinder comes standard with our PLC based S260 program control system.
Taskmaster TT
The Taskmaster TT twin shaft grinder features an integrated tramp trap housing. This unit was specially designed for septage receiving and waste handlers where occasional rocks and other heavy objects get into the flow.
Built with a heavily constructed extended housing, the Taskmaster TT housing features a trap area designed to allow heavy tramp materials to settle out. This provides protection not only for the grinder itself, but for downstream equipment as well. The unit is provided with a slide gate for easy unloading of accumulated debris.
- Twin Shaft Grinding Mechanism
- Drop-In Housing for Easy Maintenance
- Cutter Cartridges - 4140 Alloy Steel
- No Cutter Stack Re-tightening Required
- 4", 6" 8", 10" and 12" ANSI Flanges
- 2" Hexagonal Shafting - Alloy 4140
- Ductile Iron and Steel Construction
- High Flow Side Rails
- Direct Drive
- C-Face Motor: 3HP or 5HP
- Shaft Speed: 60 RPM
- Vertical or Horizontal Orientation
- Suitable for Wet or Dry Service
- Cutter Profile: 7 Tooth Cam Design
- Automatic Jam Sensing Program Controller
- Drain Plug
Options:
- ISO (DIN) Flanges
- Choice of Cutters: 5Tooth, 7 Tooth, 11 Tooth, 15 Tooth ??
- Stainless Steel Construction
- Submersible Explosion Proof Motor and Drive
- Immersible Motor and Drive
- Hydraulic Drive
- Shaft Extensions
- Special Control Configurations
- Bolt-On Flanges for 14" 16", 24", 30" Flanges
