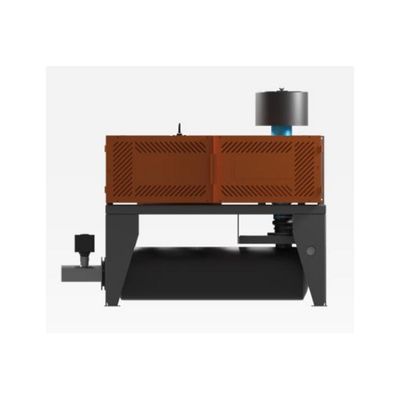

Horizon - Model PBH Series -Pressure Blower
The Pressure Blower Package utilizes positive air pressure to convey the material. The motive air/pressure is produced by a positive displacement blower which is located at the beginning of the conveying system. Air intake filter/silencer. Positive displacement blower – all major brands available V-belt drive assembly and drive guard – drive guard features access via bolted removable doors, slotted front and drop through bottom Electric motor and adjustable mount base – 230/460 V, 3 Ph, 60 Hz; all major brands, enclosures and efficiency ratings available
Weighted pressure relief valve provides superior life compared to conventional spring-loaded relief valves Check valve prevents product from entering discharge silencer in the event of a high pressure or back pressure Combination chamber – absorption discharge silencer reduces noise radiation in the vicinity of the package Vibration isolation and expansion joint isolates blower from the silencer to prevent fatigue stresses to the silencer and piping
