Product: AE 2000 N Compensation Inlays

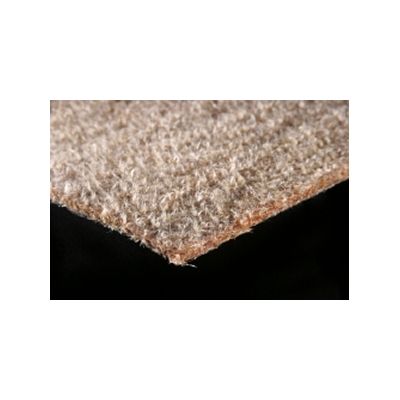

Brandenburger AE 2000 NThe AE 2000 N material is available as an uncured, malleable, non-oriented glass fibre mat saturated in resin, with a thickness of approx. 5 mm. The curing is done in accordance with special installation instructions.Most popular related searches
Special material characteristics
Corrosion and uneven pressure distribution in presses can be a cause for unevenness and insufficient plane parallelism. With the AE 2000 N, a compensation of approx. 0.4 mm per inlay may be achieved. The compensation inlay offers the following advantages:
- Easy handling
- Short curing times and thus also short machine downtimes
- Good compensation capability
- Cost-effective solution
- High heat and compressive strength after curing
- Complete press overhaul required less frequently
Areas of application
The compensation inlays are used exclusively to correct unevenness and deviations from parallelism, mainly in heated presses. They are installed at the rear of the hot plate, in front of or behind the insulation, depending on the insulation thickness and the temperature of the hot plate.
