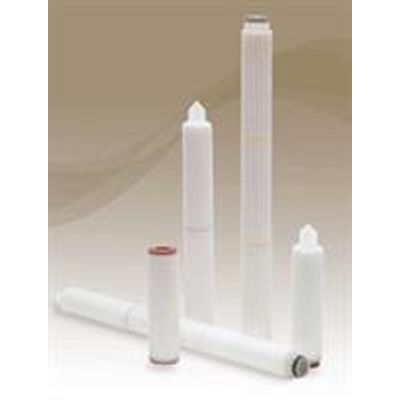

Shelco MicroVantage - Model MAT Series -PTFE Membrane Filter Cartridges
FromShelco Filters
PTFE Absolute Rated Membrane Filter Cartridges. Polytetrafluoroethylene (PTFE) membrane filter cartridges constructed in polypropylene hardware for a wide range of industrial applications. Absolute retention from 0.1 to 1.0 microns. Outstanding hydrophobicity and water intrusion resistance. 100% flushed and integrity tested to ensure rated pore size. Manufactured in Class 10,000 clean room for high purity. Meets applicable CFR criteria and USP Class VI Biological Test for plastics. Suitable for steam or autoclave sterilization and hot water or chemical sanitization.
Most popular related searches
PTFE membrane filtration cartridge
membrane filtration cartridge
PTFE membrane filtration
filter cartridge
membrane filtration
PTFE filter cartridge
membrane cartridge filter
PTFE cartridge filter
filter membrane
cartridge filter
- Absolute retention r atings from 0.1 to 1.0 microns
- High surface area provides superior flow rates and minimizes system size requirements
- Constructed of Inherently hydrophobic PTFE membrane and polypropylene components
- Ideal for gas / vent applications and filtering of aggressive solvents and chemicals
- PTFE membrane and polypropylene component construction offers excellent chemical compatibility and cost effectiveness versus all fluoropolymer filters
- Complies with Food & Drug Administration’s CFR criteria for food & beverage contact
- Meets USP Class VI Biological Test for plastics.
- Available in standard lengths and end cap configurations to fit most filter housings
- Tank Ventilation
- Specialty Chemicals
- Process Gases
- Photoresists
- Compressed Air
- Solvents
- Alcohols
- Acids
- Bases
- Esters
- Pore Sizes 0.1, 0.2, 0.45, 1.0 microns
- Nominal Lengths 9.75" (24.7 cm), 10" (25.4 cm), 20" (50.8 cm), 30" (76.2 cm), 40" (101.6 cm)
- Outside Diameter 2.67" (6.78 cm)
- Inside Diameter 1.0" (2.54 cm)
- Media Surface Area 8.5 sq.ft. (0.79 m2) per 10 inches filter length
- Gaskets/O-rings
- Silicone, Buna N, EPR, Viton, Teflon Encapsulated Viton (O-rings only)
- Materials of Construction
- Filter Media: PTFE
- Outer Cage Polypropylene
- Inner Core: Polypropylene
- End caps: Polypropylene
- Maximum Operating Temperature 176°F ( 80°C)
- Recommended Change-out Differential Pressure
- 35 psid (2.4 bar)
- Maximum Differential (Collapse) Pressure
- Forward: 70 psid @ 70°F (5.2 bar @ 21°C), 40 psid @176°F (2.8 bar @ 80°C)
- Reverse: 40psid @ 70°F (2.7 bar @ 21°C)
- Sanitization and Sterilization
- Hot water at 175°F (80°C) at 5 psid for 30 minutes
- In-line steam at 257°F (125°C) @ 1 psid (0.7 bar) for 30 minutes
- Autoclavable at 257°F (125°C) for 30 minutes
- FDA and USP Compliance
- All filters are manufactured of virgin polypropylene materials with no additives or other manufacturing agents. All polypropylene materials comply with the requirements of Food and Drug Administration Title 21 of The Code of Federal Regulations 174.5, 177.1520 and 177.1630. All components meet current USP Class VI biological tests for plastics
