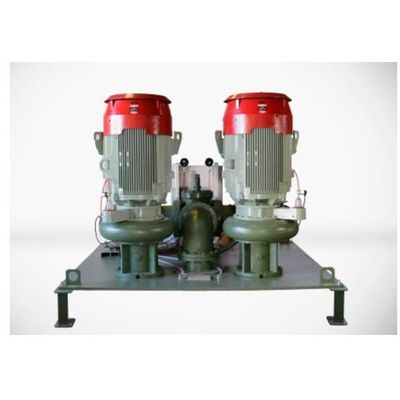

Smith-Loveless - Model EVERLAST 5000 Series -Pump Station with Duplex High Capacity Pumps
Smith & Loveless Inc.’s above-ground wastewater pumping stations pave the way for end-users to reap the benefits of robust construction, operator-safe maintenance and single-source solutions. The result is efficient pump station performance, long service life and realized savings—verified by decades of successful installations. S&L’s next generation EVERLAST™ Wet Well Mounted Pump Stations perfectly embody this philosophy. Featuring the top S&L innovations, new looks and enclosures, convenient package options, and leading warranty protection, EVERLAST™ is designed to provide you a long, successful pumping life.
- Packaged Station
- Hinged Two-Piece Enclosure
- Higher capacity Duplex Pumping
- Accomodates Larger S&L Pumps
Flows: Up to 3,000 GPM (189 lps)
TDH: Up to 255` (78 m)
Power: 1.5 - 200 Hp (1.1 - 149 kW)
Pumps: 4" - 10" (100 - 250 mm)
X-PELLER® Non-Clog Impeller
Exclusive S&L single-port impeller design proven to prevent pump clogging; effectively expels high volumes of consumer flushables. Read more >
RAPIDJACK™ Quick Clean Check Valve
S&L check valve design that simplifies valve access and any unclogging in just minutes. Read more >
DUROLAST™ Stainless Steel Baseplate
Popular station baseplate upgrade made of 316 and/or lean duplex series 2100 stainless steel. Backed by 25-year warranty protection. Read more >
STATIONCOMM™ Pump Monitoring
Remotely receive updates, monitor and control pump station functions via cell phone text messaging direct with your station. Read more >
Station Monitoring Package
Advanced pump station status monitoring features including digital flow rate. Available only with QUICKSMART™
Enhanced Alarm Package
Enhanced alarm notifications including intrustion, operator assist, low water alarm, and other water level alarms.
Building Enclosure Package
Skid-mounted pumping system configurations inside one of many climate controlled pre-fab or site-built buildings.
Cold Weather Package
Insulated versions of standard S&L enclosures combined with additional heating and vacuum release systems.
