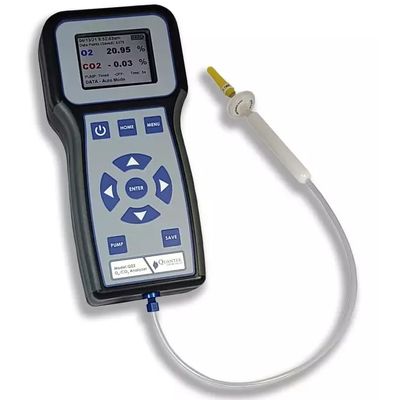

Quantek - Model Q22 -Portable O2 / CO2 Analyzer

Easy Sampling & Analysis
The Model 902D analyzer sample probe is tipped with a particulate filter and luer fit syringe needle with side-port holes to prevent plugging. When the pump is activated, sample is drawn through the probe and tubing and then to the oxygen sensor. The pump is electronically timed to draw in the precise amount of sample required for the analysis, and then turns itself off after the pre-set sampling time (5 to 10 seconds). The O2 and CO2 concentration is read on the display within 20-25 seconds.

About the Sensors
The solid-state infrared CO2 sensor has no moving parts, a compact optical cell, and microprocessor-based calibration factors using a 6th order polynomial equation and 32 bit processor to linearize the full range measurement up to 100%. Both sensors are unaffected by high levels of background gases such as nitrogen. The expected life of the CO2 sensor is theoretically unlimited, as it contains no moving parts. The expected electrochemical O2 sensor life is typically 5 years, unlike other analyzers with an electrochemical sensor that last 1-2 years.

About the Pump
The rugged miniature diaphragm pump has electronically controlled timing function to operate only when sampling. It provides high flow rate and long operating life. The pump is electronically timed to draw in the amount of sample required for the analysis, and then turns itself off after the pre-set sampling time (5 to 10 seconds).

Optional Rechargeable Battery
If equipped with the optional battery, the 902D can within transported to your facility to conduct testing with no AC outlet available. Totally sealed, long-life battery (optional) accepts full or partial charging cycle. Charger module plugs into standard 115V outlet for charging or continuous operation, though it can accept 100-240V for worldwide use.

Microprocessor/Electronics
Micro-processor based electronics provide sensor signal processing, battery charging, pump timing and on/off control for high accuracy and reliability with minimal component use and reduced size and cost.

• Weight: 3.6 kg
• Dimensions: 45.7 × 35.6 × 17.8 cm
• Carbon Dioxide Sensor Type: Solid-state Infrared
• Accuracy - Carbon Dioxide: ± 1% of reading, or ± 0.1% CO2 (whichever is greater)
• CO2 Minimum Detection Limit: 0.1% (0-50% or 0-100% range) or 0.01% (0-10% or 0-20% range)
• CO2 Calibration Controls: Digital Keypad
• CO2 Calibration Frequency: Every 12 months; calibration gas recommended.
• Expected Lifetime (oxygen): 4-5 years
• Oxygen Range: 0.00 to 100%
• Oxygen Sensitivity: 0.01%
• O2 Resolution: 0.01%
• Analog Output: Not Available
• Resolution: 0.01% or 0.1% (user selectable)
• Accuracy: +/- 0.1% (from 0-20%), +/- 0.2% (from 20% to 50%), +/- 0.5% (from 50% to 100%)
• Drift: less than 0.4% per year
• Oxygen Sensor Type: Proprietary Electochemical
• Response Time: 20 seconds to T95
• O2 Sensor Lifetime: 4-5 Years
• O2 Sensor Body: Anodized aluminum (CO2) and ABS Resin (O2)
• Sample Connection: Sample Probe
• Sample Method: Pump
• Sample Pump: Internal, draws ~5cc/sec, with 2-12 second adjustable timer (on side of unit)
• Pump Timing: 2-20 seconds, continuous, or cycling on/off, programmable
• Minimum Sample Required: 15cc
• Sampling Assembly: Probe with male luer connection for side-port needle, PTFE tubing
• Oxygen Calibration Controls: Digital Keypad Adjustment
• Instrument Calibration: EasyCal calibration
• Exhaust port: Vents to air
• Power Supply: 100 to 240 VAC, internationally compatibile
• Battery Operation: Included, internal shrink wrapped NiMH battery pack
• Input Voltage: 100-240V, 50-60Hz
• Battery Life: 12-16 hour runtime
• Measures: O2, CO2: O2, CO2
• Form Factor: Portable
• Size: 8in x 7in x 2in (203 x 51 x 178 mm)
• Weight: 2 lbs (0.9kg)
• Warranty: 2 years, parts and labor
• Standards: CE, RoHS
• Included Consumables: 200 foam septas, 2 luer fit needles, 2 particulate filters, 2 liquid block filters
• Included Documentation: Owners manual (includes operating instructions with detailed calibration instructions, calibration certficate, precautions), NIST calibration certificate
• Origin of Goods: Our goods are manufactured in the U.S.A.

• Baked Goods
• Coffee
• Dairy
• Food Packaging
• Meat and Poultry
• Prepared Meals
• Produce
