Quattro - Model DB -Algae and Biofilm Control System

The device works in harmony with aquatic wildlife (fish and animals), aquatic plants, bio-solids and planktonic organisms other than algae. Since the device can control biofilm formation on cleaned surfaces, you may notice surfaces near the device remain clean for long periods after being initially cleaned. This is due to inhibiting anaerobic bacterial colonization due to their sensing the ultrasonic signature as water turbulence. Fungi (eg. Pythium) and bacteria with gas vesicles will also be controlled by the device by causing them to lose buoyancy.

The device creates ultrasonic frequencies that cover two important bandwidth areas where algae can be controlled via critical structural resonance similar to the way a crystal glass can be broken by the right sound pitch. Ultrasound works as the force to cause these internal vibrations in algae cells or in organelles inside the algae cells that disable them.

The system is powered via the power module that is available for use with many types of power input

1. Power Module: This can be AC or DC electrical input. AC inputs include 24,100/120 and 240 volt service at 50 or 60 Hz. DC input is 24 volts via solar or AC charged batteries (typically two 12 volt batteries in series.) The power module converts the input power to the 40 volt DC line voltage needed to power the sonic head.
2. Connecting Cable:  This connects the power module with the sonic head to provide power and communications to and from the sonic head. Cables are built to customer required lengths up to 250 meters. Longer cables can be built as needed. Other devices of this type are typically limited to cables lengths of 75 meters due to cable voltage drop that reduces the driving voltage for the circuit and the sound output level drops proportionately. The *Quattro-DB® has compensating circuitry in the sonic head that boosts the incoming voltage to the 40 volts needed by the circuitry and is a unique and patent pending feature of the device.

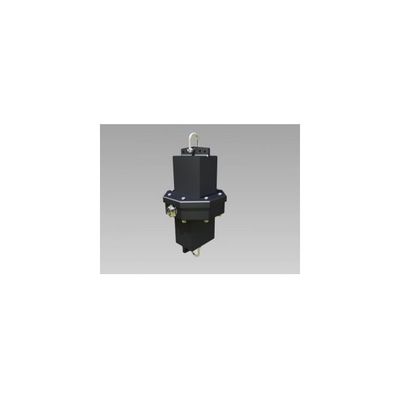

3. Sonic Head: This contains the frequency driver and the sonic emitters that produce the ultrasonic output signal. The top and bottom 9 sections house the piezo sonic emitters. They are offset by 90° so that the sound is projected radially away in 4 directions. The two way output and the two piezo mounts are unique in the industry.
4. Float: This provides buoyancy for the sonic head and cable. The placement of the device is normally away from the bank so that there is a line of sight from the device to as much of the shoreline as possible. A flag on the float warns boaters not to anchor there due to the cable below. The user supplies an anchor to which the unit is tethered. The cable runs back to shore to a power supply run on AC or DC power.
