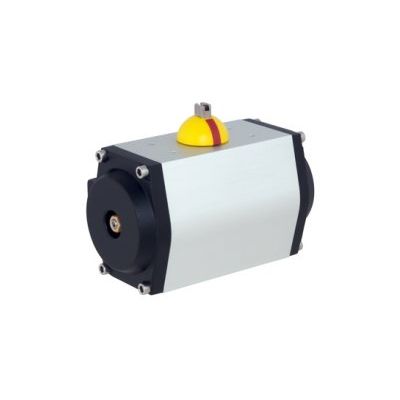

Rotork - Model GT Range -Rack and Pinion Actuators

SHARE

Double-acting and spring-return pneumatic actuators

Most popular related searches

rack and pinion

spring return actuator

pneumatic actuator

Double-acting and spring-return pneumatic actuators
Extruded aluminium body with cast aluminium end caps
Corrosion resistant cylinders and nickel-plated pinion
Mechanical interfaces to ISO 5211, EN 15714-3-4, NAMUR VDI / VDE 3845
Torque output from 2.4 to 15,300 Nm (135,400 lbf.in)
Supply pressures 2 to 10 bar
Actuators certified to ATEX 2014/34/EU
Certified suitable for use at SIL3 as a single device (IEC 61508)
