AZCO - Model RMU-DG3 - Rack Mountable ...

AZCO - Model RMU-DG3 -Rack Mountable Ozone Generator

FromAZCO Industries Limited

SHARE

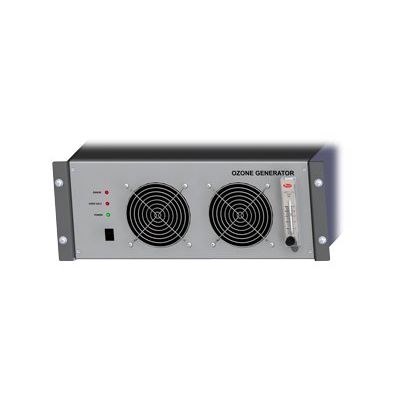

The RMU16-DG3 is a rack mountable Ozone generator which produces up to ~20 g/hr of ozone @ 6 l/min of oxygen. This unit utilizes our double quartz technology for ultra pure and high concentration applications. The double quartz technology is tuned specifically for oxygen and thus should only be run with an oxygen concentrator or an oxygen tank. Rack mounted units such as this are designed to operate with a controller (e.g. RMOC) The picture below depicts a single RMU16-DG3’s.

Most popular related searches

ozone generator

ozone generation

oxygen concentrator

corona discharge

process gas oxygen

~20 g/hr @ 6 l/min
Double Quartz Technology
Rack Mountable
Powder Coated Al. Cabinet
Modular Form Factor
Standard Flow Meter
Easy to use and install

General

Voltage [VAC, 50/60Hz]: 100-120
Power Consumption [W]: 310
Ambient Temperature [°C]: 2 to 32
Relative Humidity [%]: 92 (non-condensing)
Mass [kg]: 9.0
Dimensions [LxWxH][mm]: 370 x 484 x 177
Installation: Refer to AZCO`s installation manual for specific product
Warranty: 3 year

Ozone

Generation Process: Pulse, Corona Discharge
Process Gas [bar]: Oxygen, Free of dust and oil. Maximum pressure +- 0.36
Production On Oxygen: ~20 g/hr @ 6l/min

Options

Internal Air Pump: N/A
Adjustable Output: N/A
Interlock: N/A
Flow Meter: S
Oxygen Ready: S
Vacuum Switch: N/A
Built-in Air Dryer: N/A

Safety

CSA File #
ETL File # [Canadian & US]
UL File #
