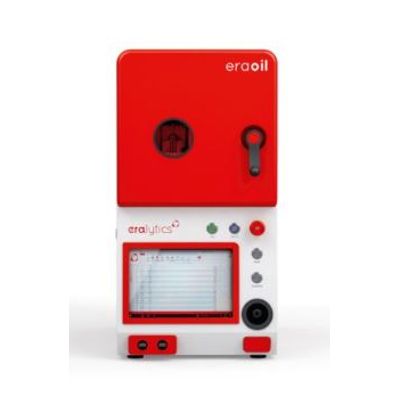

eralytics - Model ERAOIL -RDE-OES Spectrometer for Elemental Analysis

ERAOIL is the first and most advanced stand-alone rotating disc electrode spectrometer analyzing wear metals, additives, and contaminants in all kinds of operating liquids, like lubricating oils, fuels, coolants, process water, etc. Up to 32 elements are measured fully automatically within 30 seconds. ERAOIL’s high-end CMOS detector in combination with the automatic background correction allow for a sub-ppm detection limit (LOD) for most elements.

Smallest footprint with built-in PC

ERAOIL’s unique stand-alone design offers a rugged all-in-one package for operation even in the smallest on-site testing labs. It comes with a built-in 10” color touchscreen and a PC. Even an electrode sharpener and an automatic ventilation system are integrated into the ERAOIL. Still, it is the RDE-OES analyzer with the smallest footprint on the market. ERAOIL is very easy to use even for untrained operators. The automated measuring procedure follows simple steps and is therefore perfect for on-site inspection: Just fill the sample cup, close the door, and push the start button. The elemental concentration is available immediately.

High-precision oil & fuel analysis

ERAOIL is fully compliant with ASTM D6595 (oil) and ASTM D6728 (fuel). ASTM D6595 is the standard for identifying wear metals and contaminants in used lubricating oils and used hydraulic fluids by rotating disc electrode optical emission spectrometry. For determinating contaminants in gas turbine and diesel engine fuel, ASTM D6728 is the standard of choice. To protect finished fuels against trace contamination ERAOIL is available with the special Low Detection Fuel Module to detect e.g. Potassium, Lithium, Sodium and Vanadium at LOD levels of as low as 0.1 ppm.

Applications of the Spectrometer ERAOIL

Multi-elemental analysis is the core of in-service oil analysis. ERAOIL is the perfect solution for wear metal analysis of lubricants from engines, transmissions, hydraulic systems and gears boxes. The fast and easy elemental analysis brings clear advantages for the operation of any commercial means of transport or machines in the industrial environment. This solution also offers clear added value for other applications such as coolants, metal working fluids, or any other process fluids.

Your features at a glance

• Analyzing wear metals, contaminants, and additives in lubricating oils and hydraulic fluids according to ASTM D6595 and contaminants in gas turbine and engine fuel according to ASTM D6728
• Up to 32 elements in 30 seconds with sub-ppm LOD
• Stand-alone design with built-in PC, touchscreen, sharpener & ventilation
• Smallest and most rugged housing for lab and on-site applications

• Available Test MethodsASTM D6595: Wear metals, contaminants, and additives in used lubricating oils and hydraulic fluids
• ASTM D6728: Contaminants in gas turbine and engine fuelCorrelation toASTM D5185 (ICP-AES)Spectrometer TypeRotating Disc Electrode Spectrometer (190 - 810nm)
• Thermally stabilized Paschen-Runge mounting with CMOS detectorsApplicationsDetermination of additives, wear metals, and contaminants in lubricating oils,
• hydraulic fluids, gas turbine & diesel engine fuel, heavy fuel oil (HFO), crude oil,
• glycol coolants, process water, mineral water, and greaseAnalytical RangeSimultaneous measurement of up to 32 elements in 30 seconds with a sub-ppm detection limit (LOD) for most elements incl. automatic background correctionCalibrationFactory calibrated for 26 elements
• Optional calibration for up to 32 elementsSample Volume2 mL; no solvents, reagents or gases are needed, no cleaning of cell windowOperating Conditions0 °C to 40 °C (32 °F to 104 °F)
• Up to 90% humidity, non-condensingFully Integrated Stand-Alone DesignBuilt-in electrode sharpener and ventilation system
• Industry-proven multilingual 10” color touchscreen
• Built-in PC with Ethernet, USB, and RS232 interfaces
• Optional connection of a monitor and data input by external keyboard, mouse, or barcode readerSoftwareWindows® software for convenient data transfer, viewing spectra, and result analysisResult DatabaseOver 100,000 detailed test reports and spectra storable in internal memoryDimensionsW x D x H = 36 x 66 x 69 cm (14.2 x 25 x 27 in)Weight85 kg (187 lb)Power Requirements90 – 270 V, AC 50/60 Hz, 500 WRecommended Consumables for 1000 TestsEOL01 – A001 graphite discs (1000 pcs)
• EOL01 – A002 graphite electrodes (100 pcs)
• EOL01 – A003 2 ml sample cups (1000 pcs)
