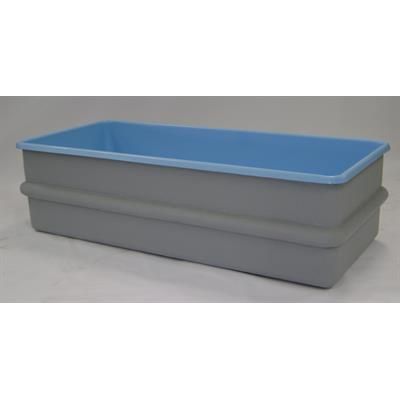

Hydro Composites - Model FBT-45 -Rectangular & Square Tanks
Hydro Composites manufactures rectangular and square tanks for various applications in many different lengths, widths and depths. Most of our rectangular and square tanks are fabricated in one piece using contact molds built by our skilled staff. Thickness, color and bottom shape can be altered depending on the application for the tank.
- Rectangular tank with 1.5" flange
- Includes interior and exterior includes FDA-approvable gel coat
- Dimensions:
- Length: 28"
- Width: 25"
- Height: 15"
- Thick: 3/16"
- Listed measurements are inside dimensions. Outside dimensions can be as much as 12" larger due to structural flange requirements.
- Standard Colors: Black, Dark Green, Tan, White, Pool Blue, Light Grey and Dark Blue.
- Custom Colors: Available upon request. Some colors may incur additional charges.
The tanks are designed to be fully supported on the bottom. If your application does not allow for this we can reinforce the bottom with heavy lay-up and foam core to allow support by concrete blocks or other means. If your application requires a size we do not currently manufacture we can make a mold and produce tanks to your specifications. We have the ability to put your concept into CAD to insure the design meets your satisfaction prior to construction. Hydro Composites manufactures all tanks using premium FDA approvable iso-resins, gel coat and glass materials. Structural foam is used to prevent bowing of the side walls on all tanks over 26" deep. Upon request, foam can be added to any tank for an additional charge.
Options and Accessories: (available upon request for an additional charge)
- drain sumps
- skimmer boxes
- pipe fittings
- baffles
- tie downs
- lifting lugs
- screens
- acrylic windows
- polycarbonate windows
- insulated walls and bottoms
- external reinforcement
- legs
Standard Colors: Black, Dark Green, Tan, White, Pool Blue, Light Grey and Dark Blue.
Custom Colors: Available upon request. Some colors may incur additional charges.
- Dimensions measured outside of the flange, not on the inside of the tank.
- Tank volume calculated at tank`s full capacity.
