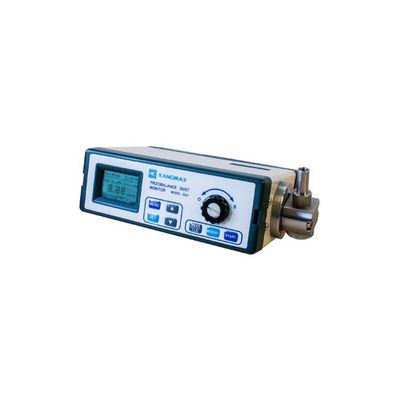

Kanomax Piezobalance - Model 3521/3522 -Respirable Aerosol Mass Dust Monitor

Product Features
The Kanomax PIEZOBALANCE Dust Monitor 3521/3522 is a unique respirable aerosol monitor, providing direct mass concentration of particulates using PIEZOBALANCE technology; ideal especially for oil mist monitoring.

• The Kanomax 3521 is equipped with 4 and 10µm impactors while the 3522 is equipped with a 2.5µm impactor.
• Unlike conventional dust meters, which count particles, a PIEZOBALANCE dust meter like the 3521 or 3522 “weighs” mass concentration of particulates.
• As an air sample enters the system, it travels through the impactor, which captures and removes larger particulates away from the sample.
• Smaller particulates become electrically charged and deposited on the piezo-crystal.
• The total mass of the deposited particulates affects the piezo-crystal’s frequency.
• Since the change in frequency is proportional to the mass of the particulates, the actual weight of the particulates is obtained.

• Measures PM 10, Respirable, or PM 2.5 particle matters
• Real-time measurements of dust concentration
• Data logging up to 500 measurements
• Simple cleaning mechanism for easy maintenance
• Complete with data processing software, RS 232C cable, cleaning kit, Ni-MH battery pack, AC adapter, carrying case and calibration certificate

• Oil Mist Monitoring
• The Kanomax Series 3520 Piezobalance Dust Monitor outperforms the existing systems that monitor real-time oil mist levels in terms of accuracy and speed.
  Read more: Piezobalance For Oil Mist Monitoring Application Note

Measurement Specifications

• Model: 3521
• Measuring Object: Airborn Particle Matter 0.1 to 10 µm
• Impactor: 10 µm, 4 µm
• Measuring Range: 0.01 to 10 mg/m3
• Accuracy:
• ‘+/- 10% of reading +/- 1 digit (0 to 5 mg/m3)
• +/- 20% of reading +/- 1 digit (5 to 10 mg/m3)
• Model: 3522
• Measuring Object: Airborn Particle Matter 0.1 to 2.5 µm
• Impactor: 2.5 µm
• Measuring Range: 0.01 to 10 mg/m3
• Accuracy: ‘+/- 10% of reading +/- 1 digit

General Specifications

• Sampling Flow Rate: 1 L/min
• Data Logging: 500 data and time stamped measurements
• Interface: RS-232C
• Power Supply: Ni-MH battery or AC adapter
• Dimensions: H7.0″ x D5.9″ x W2.7″ (180 x 150 x 65mm)
• Weight (with batteries): 4.4 lbs. (2 kg)
• Warranty: 1 year
• What’s Included: Meter, Operation manual, Software, RS232C cable, AC adapter, NiMH battery pack, Cleaning kit, Impactor(s), Carrying case, Calibration certificate
