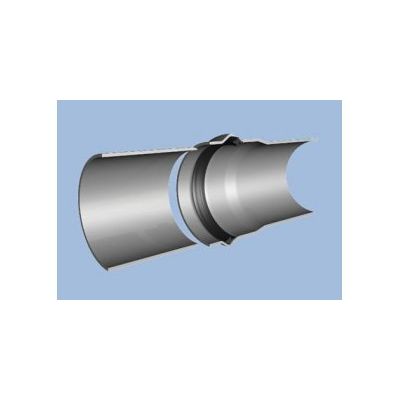

Trelleborg - Model 559 -Rieber Metric Pressure Seal System
Cannot be displaced during transportation & installation. Greater joint reliability due to joint tolerance reduction. Traditional Rieber style seal for metric pressure pipes.
Most popular related searches
sealing system
drinking water pipe
pressure seal
water piping
water pipe
pressure pipe
drinking water
sequencing batch reactor

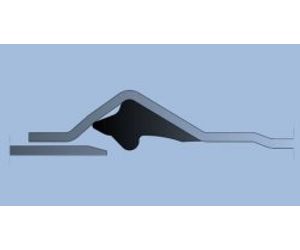

The Forsheda 559 Rieber Metric Pressure integrated system uses the mandrel together with the seal as a tool to form the pipe socket during the manufacturing process.
Trelleborg 559 Rieber Pressure (metric) sealing system meets or exceeds current international standards
- Standard material is Synthetic SBR rubber, available in EPDM and Nitrile by special order.
- Hardness 55±5 Shore A
- Meets the requirements of ASTM F-477, NMX T-021 and ISO 16433
- Approved in accordance with EN 681-1 and CSA
Step 1
- The spigot and socket of the pipe should be checked for damage prior to jointing.

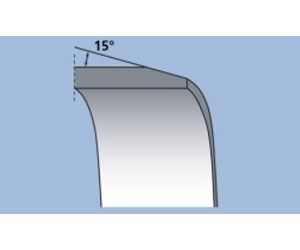

- The pipe spigot should be chamfered with an angle of 15°, taking care to remove all burrs. Both spigot and socket including the sealing ring should be free from dirt and other foreign matter.
- Lubricant should be applied evenly to the spigot end of the pipe.
Step 2
- Immediately after lubrication, the spigot should be brought into contact with the socket.
- Both spigot and socket should correctly aligned and then slide the spigot into the socket, thus compressing the seal until the joint is fully made.
