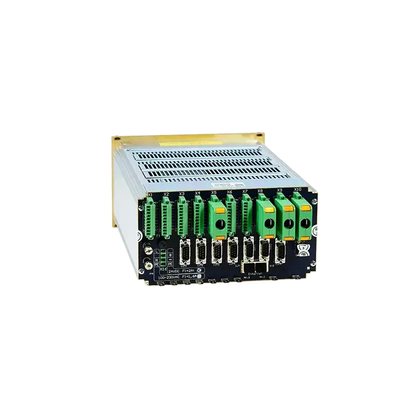

RMG - Model ERZ 2000-NG -Flow Computer
The instruments of the ERZ 2000-NG series are designed as universal instruments that can be used for all measurement tasks in a gas measuring station. RMG has optimised the ERZ system with regard to operability and user-friendliness. This makes it even more efficient in operation and provides more precise results.
Most popular related searches
- Parallel calculation of the compressibility index according to all common calculation methods
- PC operation via any Internet browser
- Characteristic curve correction
- Graphic display and user-friendly touch screen operation
- Parameters, Constants, Border values freely programmable
- Differential pressure computer ERZ 2114-NG
- Static volume corrector ERZ 2004-NG
- ERZ 2104-NG calorific value corrector
- Differential pressure computer ERZ 2114-NG
- Parallel calculation of the compressibility index according to all common calculation methods such as GERG 88 S, AGA 8, AGA NX 19 or Beattie-Bridgeman
- PC-based computer
- Graphic display and easy operation on the touch screen
- PC operation via any Internet browser
- Parameters, constants, limit values freely programmable
- Characteristic curve correction of the gas meter
- Test functions (freezing of measured and calculated values, on-the-fly calibration, operational test)
- Integrated tariff memory
- Programmable archive
- Remote data transmission
- DSfG control centre function
- Ex-i cards for pressure, temperature and volume inputs pluggable
- Plug-in module design, 19" rack
- PTB / MID approved
In addition to the common calculation methods, the most commonly used communication protocols are also supported by the device:
- Modbus (RTU, ASCII)
- Modbus TCP
- Instance-F
- DSfG A and B
- RMGBus
- THEREOF
- HART
- Connections:
- 2-channel volume input
- Digital and analogue inputs
- Pulse and analogue outputs
- DSfG interface to DVGW G 485
- Modbus interface (ASCII/RTU/TCP)
- 2 x Ethernet TCP/IP network interface
- Supply voltage: 24 V/DC
- Ambient temperature: -20 °C to +55 °C
