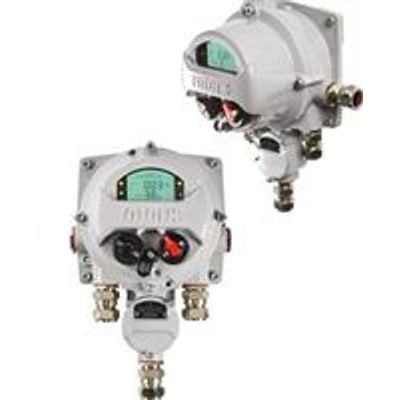

Rotork - Model ELB -Line Break Detection System
FromRotork plc
Rotork’s ELB (Electronic Line Break) is a robust self-contained electronic pipeline monitoring system designed for use in the gas & oil industry. It will continuously monitor pipeline pressure dynamics to provide early detection of pipeline breaks and initiate automatic valve actuator movement to an emergency position based upon user-defined parameters. The powerful and versatile system can also collect detailed operational data useful for optimising performance and enhancing pipeline safety.
Most popular related searches
hazardous area enclosure
pipeline monitoring system
pipeline monitoring
pressure monitoring
position sensor
valve actuator
hazardous area
electronic monitoring system
industrial continuous monitoring
pipeline pressure monitoring
- Intuitive user interface featuring an advanced backlit display
- Comprehensive data logging in non-volatile memory with real-time clock
- Manual reset option to maintain fail-safe position until human intervention allows a return to normal operation
- Pressure monitoring with RoD and RoR calculation
- Configurable fail position to Open, Close, or Stay-in-place
- Configuration and data retrieval via Rotork Bluetooth® Setting Tool or PC (using Rotork Insight 2™)
- Will operate on 9 to 28 VDC supply voltage
- Local controls Open, Close, Local / Remote / Stop
- Remote control available via either hard-wired connections or Modbus® serial communication protocol
- Partial stroke available
- Provision for up to six remote inputs
- Optional position sensor input
- Up to four configurable solenoid outputs
- Rotork designed hazardous area enclosure
- Can be mounted either on the actuator or remotely
- Compatible with a variety of actuator types
