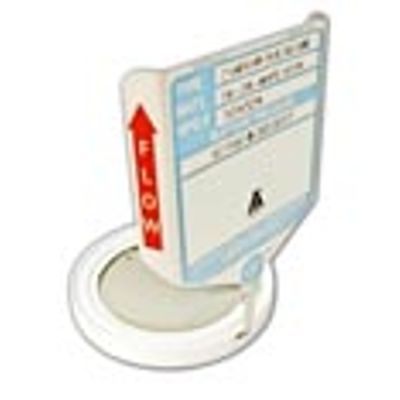

SANITRX HPX - Rupture Disc
The SANITRX HPX rupture disc is a scored reverse acting rupture disc designed specifically for the pharmaceutical, food and beverage, and biotech industries. This differential pressure relief device features an instantaneous full-open relief area for protecting equipment, vessels, systems and people from an overpressure condition. This high precision reverse acting rupture disc offers proven performance in excess of 250,000 cycles at a 95% operating ratio.
- Nominal Size Range: 1 " - 3 " ( 25 mm - 80 mm )
- Burst Pressure Range: 10 psig- 250 psig ( 0,69 barg - 17,2 barg )
- Recommended Operating Ratio: 90 or 95 percent of the rupture disc’s rated (stamped) burst pressure
- Seating Configuration: Standard Sanitary Ferrule
- Service: Gas
- B.D.I. Alarm System Compatible? : Yes
- ASME Code Symbol Stamp Available? : Yes
(B.D.I.) Burst Disc Indicator
Continental Disc Corporation`s Burst Disc Indicator (B.D.I.) Alarm System is designed specifically for use with C.D.C. Rupture Discs. Upon disc rupture, the Burst Disc Indicator strip is severed, disrupting the flow of electric current through the strip. An attached alarm monitor can then transmit a warning and/or activate appropriate equipment.
• Extreme cycling durability - proven performance in excess of a quarter million cycles!
• High precision - choice of 90% or 95% maximum recommended operating ratio
• High versatility - wide range of burst pressures, materials and sizes
• Precision scoring on the vent side of the dome assures optimum cleanability and improves rupture disc performance in severe service applications
• All rupture discs include sanitary, environmentally friendly, non-toxic packaging
Available to fit between industry standard sanitary ferrules, NA-connect®* flanges and SANITRX® fittings
• Permanently attached three-dimensional flow direction tag allows for accurate installation ensuring proper performance within the piping system.
• Available in 316 SS and Hastelloy®** C. Other materials available upon request.
• Manufactured to provide a safety ratio of 1 to 1 or less. If the rupture disc becomes damaged, it will relieve at or below the rated burst pressure.
• Vacuum conditions: rupture disc can be operated to full vacuum even in the lowest available burst pressure.
• Ideal for gas/vapor, liquid and partial gas/liquid service applications.3• Available with the B.D.I.® (Burst Disc Indicator) alarm system to remotely signal when the rupture disc has burst. Refer to Rupture Discs with B.D.I. Alarm System literature for details.
• SANITRX HPX Rupture Discs are available with the full support and expertise of our Tech Team and Special Projects Group for special applications and new designs.
