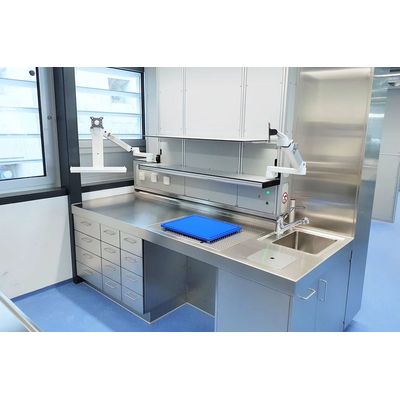

Gasser Apparatebau - Sample Preparation Station with Service Cell at the Back

The cover and the substructure of this sample receiving table are made of Cr-Ni 1.4571, as very aggressive chemicals are used in this workstation. This workplace consists of the sampling table and the fresh air supply on the ceiling. The interaction between the fresh air supply element and the sampling table creates a laminar air flow for optimal working conditions. The air extraction in the grossing tables is carried out by a surface extraction in the work surface, an edge suction in the area of the old formalin spout as well as a rear wall suction over the entire length of the table. The basin under the work surface is provided with a sprinkler pipe, the drainage channel of the basin is made with hygienic radii on the floor to ensure easy cleaning.

• Design: According to customer requirements
• Length: 2380 mm
• Width: 920/1220 mm
• Working height: 910 mm
• Basin size: 400 x 320 x 200 mm
• Used formalin spout: Ø 133 mm
• Water fittings: Mixer tap with swivel spout and pull-out shower on the surface in the area of the basin
• Garbage disposal chute: Ø 250 mm
• Supply / exhaust air volume: 600 m3 / h (via on-site ventilation system)
• Substructure:
• 3 drawer blocks on the long side and a hinged door cabinet for the used formalin tank
• On the right front side a hinged door cabinet for the waste bin and a hinged door cabinet for installations
• MAK limits: Significantly below legal maximum limit
