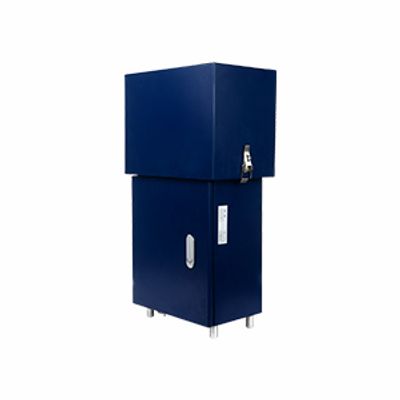

Tianyu - Model SNCR & SCR -Sampling Probe
The gas sampler is easy to operate, with a built-in micro filter, which is suitable for various probes and joints of different specifications. The heated sampling probe heats and transports the sample gas, which is more and more widely used.
Most popular related searches
sampling probe
heated sampling probe
sample gas
digital temperature controller
heated sampling
gas sampling
sample heating
sample temperature
sample transport
temperature switch
- The sampler adopts electric heating, and the heating speed is fast.
- The temperature control of the sampler is performed by the built-in temperature control switch. The default temperature is: 150 ? ± 10 ?.
- The filter device of the sampler in the heating and insulating cavity. Solid particles larger than 2μm are removed by the silicon carbide microfilter.
- The sampler has backflush and calibration functions.
- Sampling gas temperature: 800°C Max
- Gas pressure: 0.4~3BarMax.
- Ambient temp.: -20°C~80°C
- Probe temp.: 150°C±10°C
- Connector of pipe: G3/4"
- Gas outlet: OD6/4mm {or OD3/6mm)
- With backflushing: Yes
- Backflushing gas inlet: OD6/4mm {or OD3/6mm)
- Filter material: silicon carbide: 2um/75mm
- Filter chamber capacity: 40cm3
- Power supply: 220V 50Hz
- Power consumption: 650W
- IP class: IP65
- Startup time: Less than 30Min
- Weight: 12Kg
- Enclosure: blue printed
