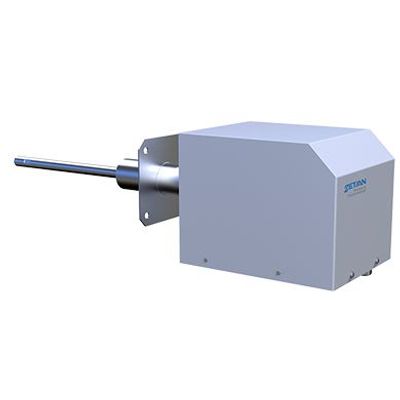

Zetian - Model GSP-100 -Sampling Probe (Conventional)
GSP-100 Sampling Probe adopts special design to adapt to multiple working conditions (high temperature, high dust, high humidity and strong corrosion, etc.). It can match with various sampling pipes, filter and heating unit. It owns advantages of large filtering area and capacity, good gas tightness, high filtering precision, dust leak proof design with patent, reliable operation, fast response, convenient installation and maintenance.
Most popular related searches
continuous emissions monitoring system
sampling probe
emissions monitoring system
continuous emissions monitoring
emissions monitoring
sample gas
dust filter
sample temperature
digital temperature controller
dust leak
- Filter uses ceramic material, with high corrosion resistance under condition of high humidity, high temperature and high dust
- Special internal structure design, reducing dead zone of sample gas effectively
- Filter dust particle larger than 2μm, small gas resistance
- Efficient internal external purge design, effectively remove dust and avoid blockage, thus reducing regular maintenance
The product is suitable for continuous collection of waste gas after combustion, typically applied in t collection of sample gas containing high moisture and dust in flue of power plant and cement production process.
- Sampling temperature: ≤600℃
- Heating temperature of sampling cavity: 120±10℃
- Filter precision: 2μm
- Temperature control precision: ±0.5℃
- Working temperature: -10℃~60℃
- Purge gas source: (0.4~0.8) MPa nitrogen or purified instrument air
