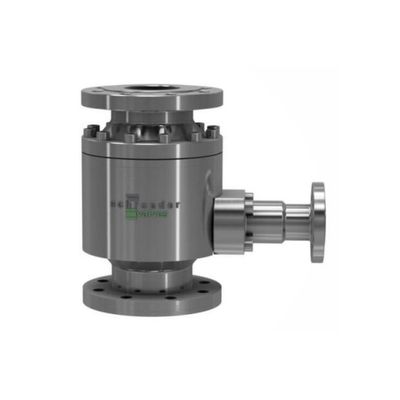

Schroeder - Model SSV -Automatic Recirculation Control (AR) Valves
The automatic recirculation control (AR) valves from our SSV series automatically protect centrifugal pumps against wear, total loss and damage, which can occur due to dry running or during low-load operation. Our recirculation valves have historically proven exceptional reliability and low pressure loss over time. They are not susceptible to interference and are very low maintenance. In addition, they require no additional power supply or any kind of control unit, thus ensuring low operating costs.
Most popular related searches
non-return check valve
drinking water supply
automatic recirculation valve
automatic control valve
control valve
centrifugal pumping
rotary valve
check valve
drinking water
water supply
- Modulating and low-wear minimum volume controls as a result of the rotary valve design
- Non return check-valve function in the main line prevents pump damage by back flow from the process line at shut-off and standby
- Multi-level pressure and volume reduction in the secondary outlet ensures low cavitation levels
- Self-actuated - no additional energy supply or measuring technology required
- Low pressure losses
- Vertical or horizontal installation
- Internal components made of stainless steel
- Reliable, with a long service life
The properties of the SSV valves make them the ideal fitting for the protection of pumps in the following fields of application:
- Refineries
- Power Plants
- Chemical Industry
- Offshore
- Renewable Energy
- Snowmaking
- Drinking water supply
- Paper industry
