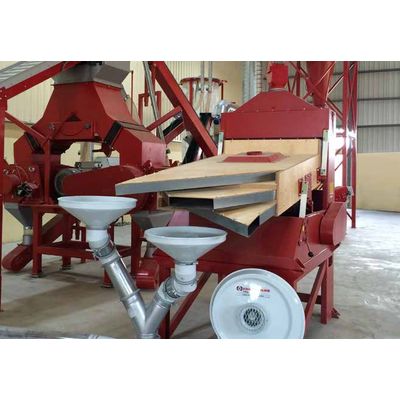

Redoma - Model SM Series -Screening Machine for Cable Recycling Plants - Up to 1300 kg/h
The screening machine is used for recovery of small copper and aluminium particles - so called fines - from the insulation of granulated and separated cable. It is always installed as an additional unit, including transport equipment, after a REDOMA separator.
Most popular related searches
screening system
cable recycling plant
granulated cable separator
particle sizing
vibrating screen
recycling plant
cable recycling
cable granulation
cable separator
granulator
The material is classified according to particle size on vibrating screens with slots. The output consists of three fractions:
- Coarse fraction – insulation free from fines
- Middle fraction – insulation containing some fines
- Fine fraction – fines
- Low operating costs
- Minimum maintenance
- Minimum manpower required
- Profitable investment – short payback time
- Replaceable screen with slots of different dimensions
- Rubber balls clean the screens continuously
- Recovery rate of fines from 60 to 80%; typically for mixed copper cable: approx. 70
*) Insulation of granulated and separated cable.
