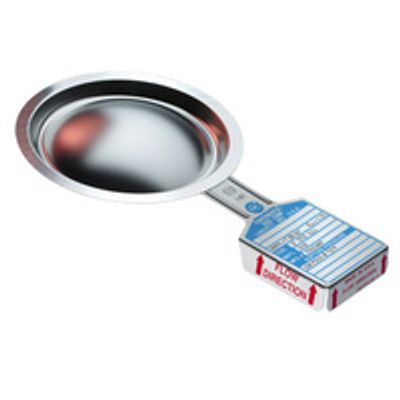

Standard - Model Standard 30° -Seat Rupture Disc
Continental Disc Corporation`s Standard Rupture Disc is a solid metal, differential pressure relief device that provides instantaneous overpressure protection for systems, equipment, and vessels. The Standard Rupture Disc provides a full-opening design that responds within milliseconds to potentially damaging overpressure accumulation, permitting its use in a variety of protection applications.
- Nominal Size Range: 0.25 " - 30 " ( 6 mm - 750 mm )
- Burst Pressure Range: 3 psig- 80000 psig ( 0,207 barg - 5516 barg )
- Recommended Operating Ratio: 70 % of the rupture disc`s rated (stamped) burst pressure.
- Seating Configuration: 30° Seat
- Service: Gas
- B.D.I. Alarm System Compatible? Yes
- ASME Code Symbol Stamp Available? Yes
- Materials not indicated or shown may be available by special design. Contact the factory for more information.
(B.D.I.) Burst Disc Indicator
Continental Disc Corporation`s Burst Disc Indicator (B.D.I.) Alarm System is designed specifically for use with C.D.C. Rupture Discs. Upon disc rupture, the Burst Disc Indicator strip is severed, disrupting the flow of electric current through the strip. An attached alarm monitor can then transmit a warning and/or activate appropriate equipment.
Heat Shield
Heat Shields are typically used to reduce the process temperature to which a rupture disc is exposed. Heat Shields are used where Teflon® or other exotic material liners are required for corrosion resistance or as part of the rupture disc itself in combination with high process temperature.
