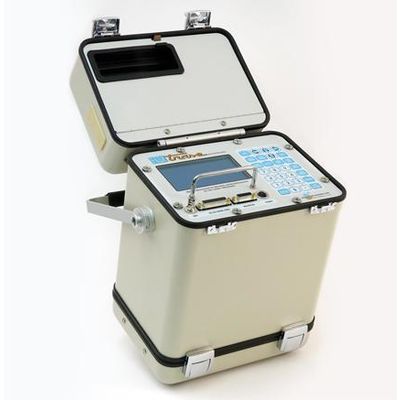

Soilmoisture - Model E-127-P6050X1K1 -Self-Contained, Portable Time Domain Reflectometry (TDR) System
The 6050X1 TRASE System I is a self-contained, portable Time Domain Reflectometry (TDR) system designed for field & Lab use for fast and accurate measurements of moisture in various materials (e.g. soil, cement, powders, grains etc). Measuring range 0 - 100% Volumetric Moisture content with a High Accuracy (+/- 2% FS or better) & 1000 point time/distance resolution.
Most popular related searches
time domain reflectometry
time domain system
moisture meter
portable containment
water sensor
data logger
metering system
analysis system
moisture monitoring
This is a true TDR instrument with automatic beginning and end point determinations and full graphing abilities, allowing determination of both time and impedance differences along a waveguide. The 6050X1 provides the largest signal Pulses of any commercial TDR unit: (1.25V / 120 ps. risetime), provides the very best characterization of dielectric changes along a waveguide.
Built-in Datalogger for 200 graphs / 6,300 readings (more with added memory). Options to remotely Multiplex from 1 up-to 256 measuring points on a daily, weekly or monthly basis.
Easily programmable with One-Key control. No calibration required. Ready to operate on-site or remotely from your computer.
Commands are entered via the keypad, data are output to the display screen, and a rechargable battery pack supplies electrical power.
Base model Includes:
- 6050X1 TRASE SYSTEM I ANALYZER.
- WAVEGUIDE CONNECTOR.
- 15CM LONG WAVEGUIDE SET.
- 20CM BURIABLE WAVEGUIDE.
- 6AH POWER PACK.
- BATTERY CHARGING TRANSFORMER.
- OTHER WAVEGUIDE PROBE OPTIONS & ACCESSORIES ARE AVAILABLE.
