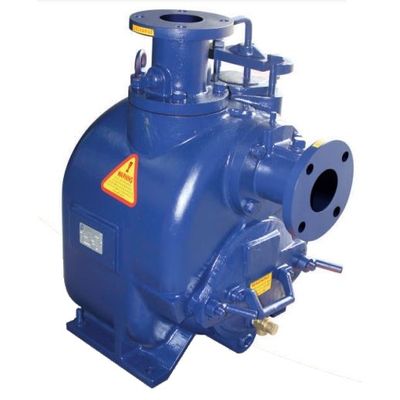

Pinnacle-Flo - Model PT Series -Self-Priming Centrifugal Pump

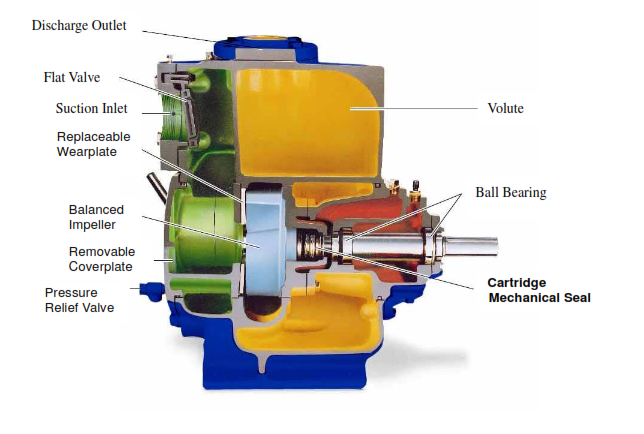

The self-priming centrifugal PT Series is the standard for industrial and sewage applications. The heavy duty construction and easy-to-service design have been well accepted in the industry. The combination of different sized pumps, impeller trims and speed variations ensure that the correct capacity pump will be matched to the exact requirements of your system, whether it`s a small sub-division or a large waste collection system. These pumps feature a large volute design that allows them to reprime automatically in a completely open system without the need for suction or discharge check valves - and they can do it with the pump casing only partially filled with liquid and a completely dry suction line.
- Size: 2"x2", 3"x3", 4"x4", 6"x6", 8"x8", 10"x10"
- Max Capacity: 3400 GPM/215 lPS
- Max Head: 130 FT/40 M
- Max Solids: 3"/76 MM
- Max Temperature: 160 oF/71 oC
- Materials of Construction: Cast Iron, 304SS, 316SS, CD4MCU

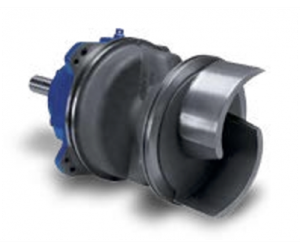

Removable Rotating Assembly

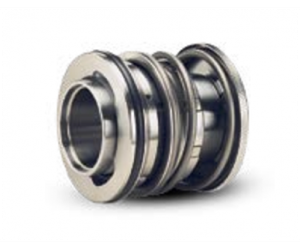

Abrasion-Resistant Mechanical Seal
Double-floating, self-aligning oil lubricated mechanical cartridge seal with stationary and rotating face of silicon carbide is specifically designed for abrasive industrial wastewater service.

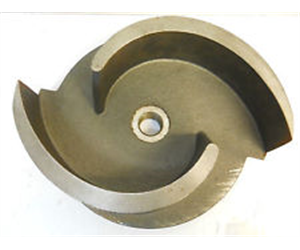

Solids Handling Impeller
Two-vane, semi-open, solids handling impeller handles up to 3" (76 mm) diameter solids, depending on pump model. Pump out vanes on impeller shroud reduce foreign material buildup behind impeller and reduce pressure on seal and bearings for extended pump life.

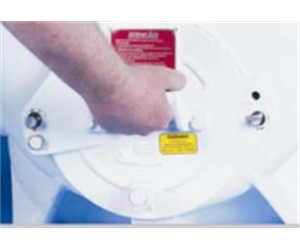

Removable Cover Plate
Removable cover plate provides quick and easy access to pump interior without disconnecting piping. Clogs can be removed and pump returned to service in minutes. Impeller, seal, wearplate and flap valve can also be accessed through cover plate opening for inspection or service.
Replaceable Wearplate
T Series pumps feature replaceable wearplates which fasten to the cover plate and can easily be removed for inspection or service. No expensive castings to replace.
Drive Variations
T Series Pumps are available as basic units for connection to customers` power source or may be flex-coupled or V-belt driven by an electric motor. Pumps may also be powered by gasoline or diesel engines. Electric motor driven pumps with "standby" engine power are also available.
