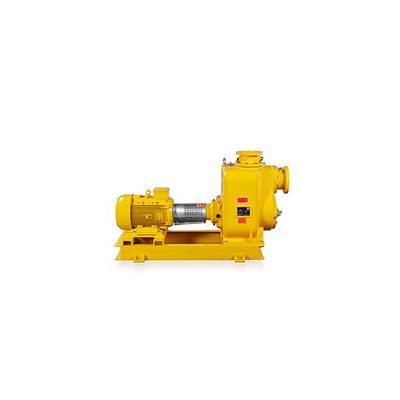

Masdaf - Model UKMS -Self-Priming Centrifugal Pumps
The flap connected to the suction flange has been specially designed so that is possible to clean or to remove and install the flap without touching the suction system. The roller bearing (bearing bushing) is supported by the pump body. There can be no problem in speed up. UKM series pumps are very easy to use because they are of self-priming type. Once the suction pipe is placed into the liquid the pump starts o function in one minute maximum depending on the suction height.
Most popular related searches
self-priming centrifugal pump
self-priming pump
centrifugal pumping
centrifugal pump
roller bearing
flexible coupling
centrifuge
sewage treatment
sewage treatment pump
sewage
- UKM - S series pumps are self-priming centrifugal pumps with upper suction flap.
- Since they are self-priming pumps it is only necessary to place the end of the suction pipe into the liquid to be pumped.
- A flexible coupling or a V-belt pulley can be used to start up the pump directly in the case of a Diesel or an electric motor.”
- UKM - S series consists of 6 different types: 2”, 3”, 4”, 6”, 8”, 10”.
- The impellers are two-vane, open type and can pump up to 76 mm (3”) solid particles depending on the size of the pump.
- The suction cover can be removed from the front, making it easy to reach the impeller. Any obstruction can be removed without touching the suction and discharge parts.
- Flow Range: 50 – 730 m3/h
- Head Range: 4 – 40 m
- Speed Range: 650 – 2900 rpm
- Suction Flange: 2” – 10” (PN 10)
- Discharge Flange: 2” – 10” (PN 10)
Pumping of residential and industrial crude sewage liquids.
- Sewage treatment insta llations.
- Pumping of liquids containing sludge and so lid particles..
- Pumping of waste water from factories.
- For use in all kinds of drainage and discharge systems
