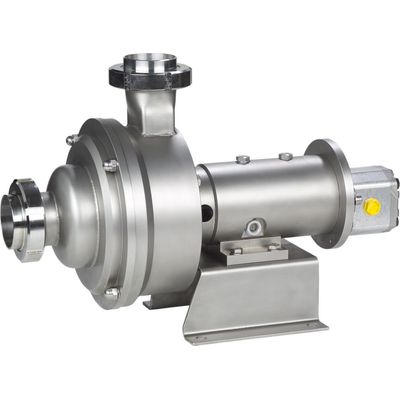

Pomac - Model ZA-IGH -Self-Priming Hygienic Truck Pumps
FromPomac BV
The Pomac hygienic truck pumps range comprises a series of special versions of CP, CP/ZA and ZA stainless steel hygienic pumps, the IP impeller pump and the PLP lobe pump, all suited for mounting in trucks. They are hydraulically driven, but can also be supplied with an electric drive. The ZA self-priming liquid ring pumps are specially made for liquids that contain air or gas.
Most popular related searches
liquid ring pump
self-priming pump
lobe pump
impeller pump
stainless steel pump
pump truck
radial impeller
Depending on the application range, but always compliant with the hygienic standards, the ZA-IGH-line can be executed with several options:
- Mechanical seal types and materials
- O-ring materials
- Pump connections
- Capacity: < 60 m³/h
- Pressure: < 60 mlc
- Impeller: Radial
- Materials: Wetted parts: 1.4404
- Connections: 2" / DN50 to 4" / DN100
- Connections:
- Couplings: DIN11851, DIN11864-1, SMS1145
- Flanges: EN1092-1, DIN11864-2, ANSI
- Tri-Clamps: ISO2852, DIN32676, DIN11864-3
- Shaft sealing: Single, double quench, Inner and outer, according to DIN24960
- Sealing materials: carbonl/CrM, carbon/SiC, SiC/SiC, Tc/Tc
- Elastomers: EPDM, Viton, NBR, Teflon, KALREZ, e.g. according to FDA
- Surface roughness : Standard > 0,8 micron
- Motor options: Hydraulic or Electric motor
