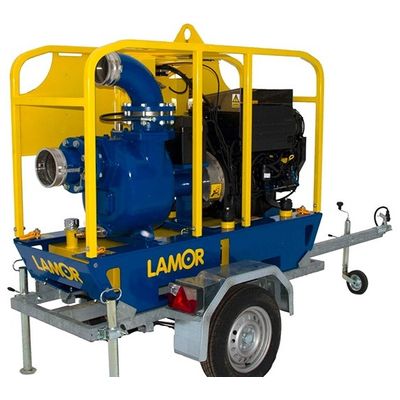

Lamor - Model LSPC 330 -Self-Priming Oil Transfer Pump
The Lamor Self-Priming Centrifugal (LSPC) 330 oil transfer pump is a skid-mounted automatic, self-priming suction pump. Designed to pump clear and dirty liquids with solids up to 7mm (3”) in diameter the pump can be used in a variety of environments. The durable construction makes the pump suitable for use with abrasive liquids. The pump is designed to be operated in the most arduous circumstances encountered in construction, mining and municipal industries with unequaled performance in effluent disposal and slurry handling.
The LPC 330 is equipped with a three-cylinder, water-cooled diesel engine. The robust engine allows for worldwide operation while meeting EU and US emission requirements. The system has no problems with oil vapor emissions and oil emulsification associated with similar priming systems. The LPC 330 has a re-priming function for ease of use, a separate foot valve is not necessary. The pump can be run dry indefinitely. The suction depth of the pump is over 7.5 meters (25 feet). Outlet and inlet ports are equipped with standard 6” DN 150 PN 16 (ASA 125) fixing flanges. Both ports can be equipped with optional additional 6” stainless steel Camlock coupling (male/female, 0/90 degrees). The model is skid mounted on a steel frame with lifting points and fork-lift slots and the frame incorporates rubber shoes/pads for interior use.
- High capacity
- Vortex style pump
- Environmentally friendly automatic self-priming
- Emission compliant engines
- Ease of operation & maintenace
- Handles large diameter solids
- Steel frame & skid w/ lifting eyes & forklift slots
- Item ID: 397867
- Length: 1850 mm / 72.8 in
- Width: 700 mm / 27.5 in
- Height: 1480 mm / 58.3 in
- Weight: 750 kg / 1653 lbs
- Capacity: 334 m³/h* / 1471 gpm*
- Engine: Deutz D2011L04i
- Pump: Victor S 160
- Total Head: 40 m / 131ft
- Pump speed (max): 2200 rpm
- Pump speed (min): 1200 rpm
- Impeller size (dia): 280 mm / 11 in
- Engine cylinders: 4
- Engine speed (max): 2200 rpm
- Engine speed (min): 1000 rpm
- Fuel tank capacity: 100 l / 26.4 g
- Fuel consumption: 9l/h / 2.4 g/h
- Noise: 90 dB
- Emission rating: EU Stage IIIA/US EPA Tier 3
- Discharge pressure: 2.1 bar / 30.5 psi
- @ 320 m³/h (1409 gpm): 1.2 bar / 17.4 psi
- Power requirement: 47.5 kW / 64 hp
- Self-priming lift: 8.5 m / 25 ft
- Max solids side: 75 mm / 3 in
- Pump I/O flange: DN150 PN16 / ASA 125 6"
