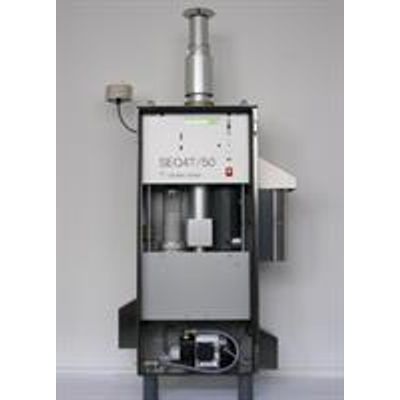

Leckel - Model SEQ47/50-CD -Sequential Sampler With Cooler

FromSven Leckel Ingenieurburo GmbH

SHARE

PM10 and PM2,5 standard reference sampler according to CEN EN 12341 (2014) .

Most popular related searches

ambient temperature monitoring

temperature monitoring

sequential sampling

stainless steel filter housing

steel filter housing

Cooling of the magazine for the sampled filters to < 23 °C according to CEN EN 14907 by Peltier cooler (up to 35 °C ambient temperature)
Measurement of the temperature of the sampled filters directly inside the magazine (not the temperature of the cold air flow close to the cooler)
Covered filters within the magazine
Data storage on USB and memory stick
Option: GSM modem with SMS status signals on smartphone
Sampling system equipped with sheath air
Temperature measurement directly downstream the filter
Stainless steel housing for outdoor use
Impactor inlets with exchangeable jets (1 set: 8 pieces, each) for PM10 – PM4,0 – PM2,5 – PM1,0
Impactor inlet with ozone denuder for PAHs (BaP) according to CEN EN 15549
TSPM Inlet according to VDI 2463 parts 5 and 8
Use of filters with diameters of 47 mm and 50 mm
