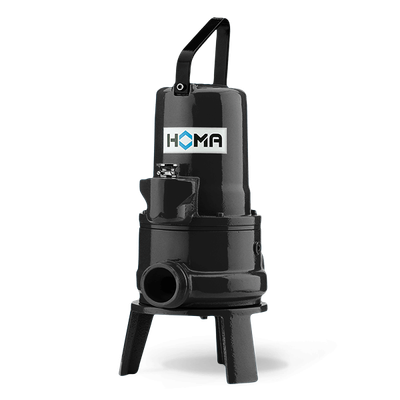

HOMA - Model Barracuda GRP16-GRP50 -Sewage Pumps With Cutter System

Application

The installation of conventional sewer systems in areas of low population like small villages, farms or under difficult topographic conditions is often extremely expensive, mainly because of the high cost for large diameter pipework installation. HOMA provides the perfect, economical alternative with Barracuda grinder pump pressure sewage systems. The Barracuda pumps cut all solids present in the sewage into small particles. This allows the use of pipes from 1 1/2“ diameter, which can be easily laid at low cost with a minimum of construction work.

Installation

Transportable or permanent. Models with float switch control for automatic pump operation, depending on liquid level in the sump.

Materials

Motor housing, pump housing, impeller (Gast iron EN-GJL-250), Rotor shaft, screws (Stainless steel), Cutter System (Stainless steel 1.4122 - 55HRC), Mechanical seal (Silicon-carbide), O-rings (Perbonane).

Pumped liquid

Waste water or sewage containing soft solids. Max. liquid temperature: 40°C, short term up to 60°C.

Motor

Fully submersible, pressuretight electric motor, single or three phase. Thermal sensors embedded in stator winding. Insulation class H, degree of protection IP 68.
