Shaftless Screw
Shaftless screw has the advantage in the non-clogging property. The shaftless design enables conveying dry, wet, viscous, adhesive, dusty or even abrasive material successfully. The system works under a closed lids, so there shall be no problems of dust, spills, or mal-odor. The screw can be made from special high tensile strength or stainless steel.

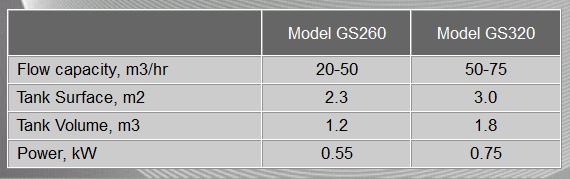

Model GS is designed for washing and dewatering the grit while lifting it from hopper to a higher point of discharge. The influent shall be pumped into the classifier through piping positioned over the triangular hopper. The inclined grit screw conveyor washes and dewaters the grit while lifting it from the hopper to a higher point of discharge.

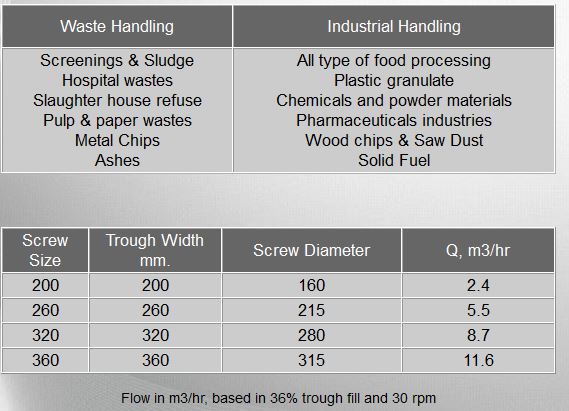

Model CY is an all purposes conveyor. The intake points as well as discharge ends can be made as many as required. The U-trough also works in inclination of up to 40 degree. In standard version, the conveyors are fitted with single spirals. For large quantities or steep inclination, the spiral blade height is increased by helical shaped inserts.
