FPZ - Model GOR/GVR_IE3 - MS -Side Channel Blowers

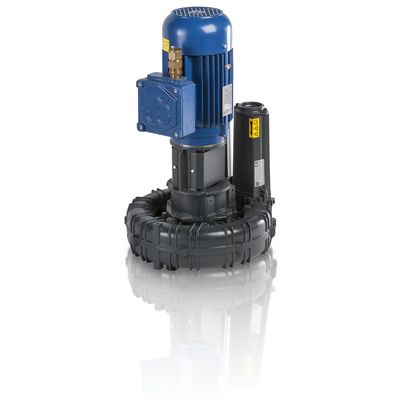

The GOR and GVR models are version with elastic coupling installed between blower and electric motor (IEC / NEMA). The machine is completed by a base for a horizontal (GOR) or vertical (GVR) rotation axis operation.

All FPZ blowers come equipped with IE3 motors, designed and manufactured according to the directive Ecodesign 2009/125/CE (CE n.640/2009 and UE n. 4/2014) and according to (including future variants) EN 60034-30-1, EN 60034-2-1. These Motors are also designed to perform safely under a wide range of voltages (Wide Range). The IE3 motors also comply to the cURus standard or certification for the Canadian and USA market.

Some industries and application fields:

• Energy: Syngas For Cogeneration Plant, Combustion Air Boost For Heat Treatment Furnaces, Methane Gas Compression, Biogas Capture And Recovery
• Food & Beverage: Filling Machines, Labellers, Washer / Dryer, Humidifying, Ice Accumulation Tanks, Packaging Machines
• Wellness & SPA: Backwashing Filters, Water Games, Whirlpool Bath
• Aquaculture: Fish Farms, Fish Feeders, Air Dryers
• Healthcare: Dental Suction, Vacuum Gas Anesthetic
• Pulp, Paper & Printing: Pick&Place
• Packaging: Hot Air Welding
• Wood: Vacuum Tables
• Electronics: Drying of Printed Circuits, Pick&Place
• Glass: Air Cushion Moving
• Chemical & Pharmarceutical: Centralized Vacuum Systems

• Type: air
• Technology: impeller
• Number of stages: single-stage
• Other characteristics: aluminum, explosion-proof
• Flow rate:
• Min.: 0 m³/h (0 ft³/h)
• Max.: 1,234 m³/h (43,578 ft³/h)
• Operating pressure:
• Min.: 0 mbar (0 psi)
• Max.: 425 mbar (6.164 psi)
• Nominal power:
• Min.: 0.37 kW (0.5 hp)
• Max.: 18.5 kW (25.15 hp)
