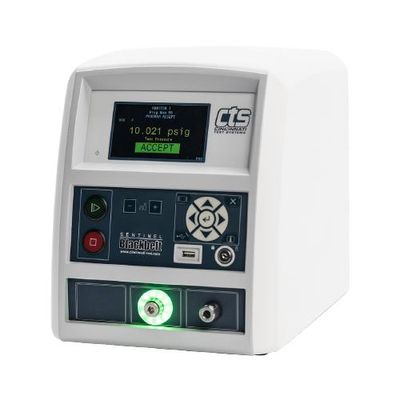

Cincinnati - Model Sentinel Blackbelt -Single Channel Multi-Port Leak Flow and Blockage Test Instrument
The Sentinel Blackbelt is a high-precision benchtop instrument providing unmatched flexibility in a proven, standard platform. Popular for medical device leak, flow, and blockage testing and other applications, the Blackbelt can reduce the footprint, complexity and overall cost of your leak test.
The instrument is configured to meet your test requirements. Choose from a vast array of test types and options of one, two, three or four sequential test ports along with many other configurable capabilities. The Blackbelt can operate anything from single tests to multiple tests in a user-programmed sequence. Combined with its ability to control up to 8 independent pneumatic actuation valves or 5 independent tooling motions with feedback, one instrument can do the work of multiple testers and often negate the need for a PLC, offering a cost-effective approach to testing.
- Designed to deliver accurate, reliable, and repeatable measurement
- Flexible and customizable to adapt to the needs of your production line
- Offers multiple ways to export test data for process intelligence
- Easy to set up through its color display or through a PC interface with CTSnet LT software
- Pressure & Vacuum Decay Leak
- Differential Pressure & Vacuum Decay Leak (New!)
- Sealed Component Leak
- Blockage/Occlusion
- Mass Flow
- Volume Verification
- Part Pressure Verification
- Proof
- Burst
- Check Valve Cracking Pressure
