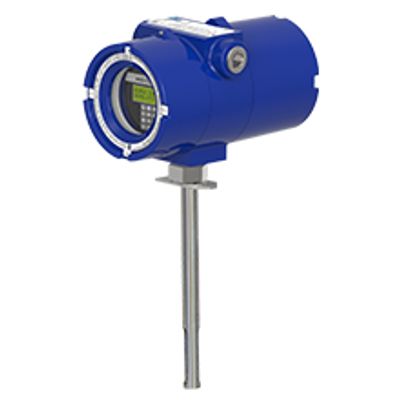

KurzModel 454FTB -Single-Point Insertion Flow Meter

SHARE

The Kurz Series 454FTB is the premier single-point insertion thermal mass flow meter for industrial gas flow measurements. The 454FTB supports process temperatures from -40° C to 260° C and from -40°C to 500° C, process pressure ratings up to 300 PSIG, and a velocity range from 0 to 24,000 SFPM.

Most popular related searches
  • Aluminum {Type 4, IP66) dual-chamber polyester powder-coated enclosure
  • Adjustable display/keypad orientation
  • Optically-isolated loop-powered 4-20 mA output
  • Integral or remote user interface
  • Easy-to-use interface
  • User-configurable flow display (scrolling or static)
  • User-configurable English or metric units for mass flow rate, velocity, and process temperature
  • Velocity-dependent correction factors for flow rate
  • Two optically isolated solid-state relays / alarms
  • Built-in zero-mid-span drift check
  • Built-in flow totalizers and elapsed time
  • Configuration/data access via
  • USB or RS-485 Modbus {ASCII or RTU)
  • Patent US 7,418,878
  • 3-year warranty
