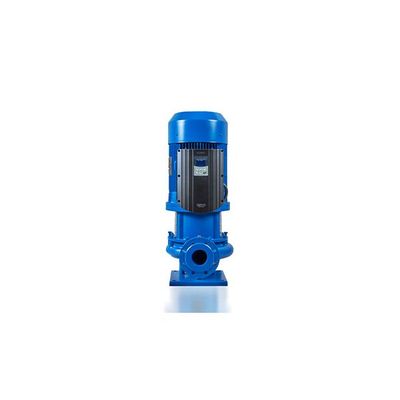

Masdaf - Model GenIO INM -Single-Stage Centrifugal Pumps

The INM GENiO series pumps are single-stage centrifugal pumps of non-self-priming type fitted with standard motors, frequency inverter and mechanical shaft seals. Outstanding features of the design are easy assembly of the frequency invertor directly into the motor; besides the compact structure of the unit it’s usage in smart applications and being integrable into the system; connectivity of different type of sensors, quiet and safe working style. The nominal flow rates of the pumps comply with the DIN 24 255 standards. Pump flanges sizes according to DIN 2533, PN 16. The dimensions of the suction and discharge ports are identical. Both pump flanges have pressure gage tapings. Single entry, closed impeller is hydraulically thrust compensated and dynamically balanced. A drain plug is fitted in the bottom of pump housing. The motor shaft is passed into the pump shaft for coupling and no need to use any coupling for the system.
