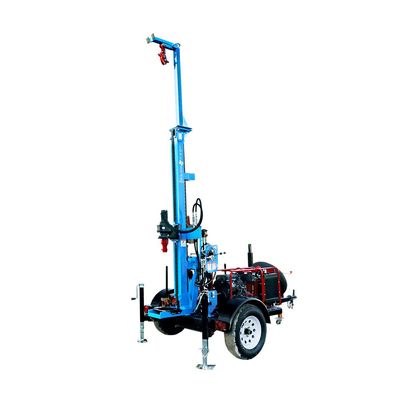

Lone Star - Model LST1G+ -Soil Sampling Drill
The LST1G+ geotechnical rig is ideal for soil sampling, geotechnical testing and well monitoring in limited-access areas. The unit’s 4-inch-diameter auger drills 6-inch boreholes to 100 feet. The setup includes a tower, cathead and pulley to facilitate standard penetration testing with a 140-pound manual safety hammer. Additionally, the drill’s 5,000-pound lifting capacity ensures easy removal of augers and extensions. The drill can be mounted to the bed of a small truck or flatbed using specially designed frames.
Most popular related searches
soil sampling drill
soil sampling
sampling drill
hollow stem auger
soil sample test
soil sampling kit
geotechnical testing
borehole diameter
well monitoring
auger drilling
- Drilling Depth: 50 ft (15.24 m)
- Borehole Diameter: 6 in (15 cm)
- Pull/Push Back Force: Up to 5,000 lbs (2,268 kg)
- Soil Types: Sand, clay & soft rock formations
- Applications: Soil sampling, geotechnical testing, standard penetration testing (SPT) and well monitoring
- Honda 20-horsepower gas engine
- 3,000-psi hydraulic system
- Tower and cathead for SPT
- Soil Sampling Kit
- Hydraulic lift cylinder to raise and lower the mast
- Tool box & spare parts
- 3- to 8-inch diameter D-series augers available in 4- or 5-foot lengths
- 6-inch outside diameter (2.75-inch inside diameter) or 8-inch outside diameter (3.75-inch inside diameter) hollow stem augers
- Standard point and blade for soft soil, carbide blade for medium to hard soil, and rock tooth auger for hardpan and weathered formations
- Single axle
- 3,500-pound (1,590-kg) rating
- Towable by ATV or truck
- Three leveling jacks
- 2-inch ball coupler
- Spare tire
- 140-pound manual safety hammer
- Split spoon samplers
- AWJ drilling rod
- Anchor kit to push beyond the weight of the trailer
- Specially designed frame to mount on a truck or flatbed
- Drilling Depth : 50 ft (15.24 m)
- Borehole Diameter : 6 in (15 cm)
- Pull/Push-Back Force : Up to 5,000 lbs (2,268 kg)
- Operating Weight : 1,850 lbs (893.15 kg)
- Auger Diameter : 3 - 8 in (7.6 - 20.3 cm)
- Auger Length : 4 or 5 ft (1.22 or 1.52 m)
- Max Drilling Torque : 500 ft-lbs (678 N-m)
- Frame : Heavy-duty welded steel
- Engine : Honda GX630 20 hp (14.9 kW)
- Speed : 150 rpm at 10 gpm (37.9 L/m)
- Fuel Tank Capacity : 5 gal (18.9 L)
- Hydraulic Reservoir : 5 gal (18.9 L)
- Transportation : Truck bed or trailer mounted
All trailer-mounted drills can ship fully assembled in a 20-foot container or knocked down and palletized.
