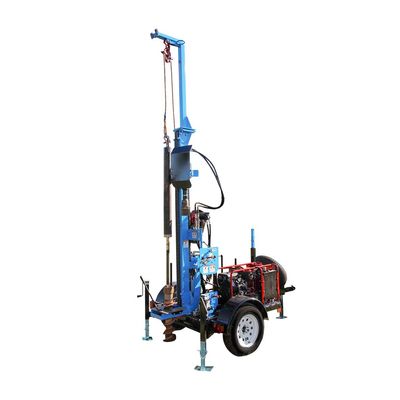

Lone Star - Model LST1G+HD -Soil Sampling Drill
The LST1G+HD geotechnical drill rig offers enhanced power and capabilities compared to the LST1G+, including a planetary reduction gearbox for up to 1,100 foot-pounds of torque, increased pull/push-back force and a strengthened steel frame. The drill includes a tower, cathead, pulley and 140-pound manual safety hammer to facilitate standard penetration testing. A 25-horsepower Honda gas engine with EFI and electronic governor powers the 3,000-psi hydraulic system, which achieves a rotary speed of 100 rpm with as much as 1,100 foot-pounds of torque. The drill can be mounted to the bed of a small truck or flatbed using specially designed frames.
Most popular related searches
soil sampling drill
soil sampling
sampling drill
hollow stem auger
geotechnical drilling rig
soil sampling kit
borehole diameter
geotechnical testing
hydraulic lifting
drilling rig
- Drilling Depth: 100 ft (30.5 m)
- Borehole Diameter: 6 in (15 cm)
- Pull/Push-Back Force: Up to 8,500 lbs (3,855.5 kg)
- Soil Types: Sand, clay & soft rock formations
- Applications: Soil sampling, geotechnical testing, standard penetration testing (SPT) and well monitoring
- Honda iGX800 25-horsepower gas engine
- 3,000-psi hydraulic system
- Tower and cathead for SPT
- Hydraulic lift cylinder to raise and lower the mast
- Tool box & spare parts
- 3- to 8-inch diameter D-series augers available in 3-, 4- or 5-foot lengths
- 6-inch outside diameter (2.75-inch inside diameter) or 8-inch outside diameter (3.75-inch inside diameter) hollow stem augers
- Standard point and blade for soft soil, carbide blade for medium to hard soil, and rock tooth auger for hardpan and weathered formations
- Single axle
- 3,500-pound (1,590-kg) rating
- Towable by ATV or truck
- Three leveling jacks
- 2-inch ball coupler
- Spare tire
- 140-pound manual safety hammer
- Soil Sampling Kit
- Split spoon samplers
- AWJ drilling rod
- Anchor kit to push beyond the weight of the trailer
- Specially designed frame to mount on a truck or flatbed
- Drilling Depth : 100 ft (30.5 m)
- Borehole Diameter : 6 in (15 cm)
- Pull/Push-Back Force : Up to 8,500 lbs (3,855.5 kg)
- Operating Weight : 1,950 lbs (884.5 kg)
- Auger Diameter : 3 - 8 in (7.6 - 20.3 cm)
- Auger Length : 3, 4 or 5 ft (.91, 1.22 or 1.52 m)
- Max Drilling Torque : 1,100 ft-lbs (1,491.4 N-m)
- Frame : Heavy-duty welded steel
- Engine : Honda iGX800 25 hp (18.64 kW)
- Speed : 100 rpm at 12.5 gpm (51.1 L/m)
- Fuel Tank Capacity : 5 gal (18.9 L)
- Hydraulic Reservoir : 5 gal (18.9 L)
- Transportation : Truck bed or trailer mounted
