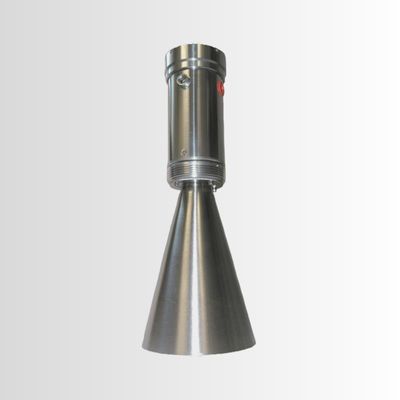

ABM - Model R-SLD -Solid Material Level Radar Sensor

The R-SLD pulse radar level sensor is the ideal solution for solid material level applications in challenging environments with temperature variations, extreme temperatures, extreme dust, wind or acoustic noise.

• No influence from extreme dust
• Measuring range up to 340 ft (103 m)
• Non-contact continuous level measurement
• Self-cleaning, maintenance free operation
• Plug-and-play installation with simple calibration
• Remote monitoring and virtual support with optional Cellular Gateway

Learn more about the R-SLD radar level sensor here.

Industries

• Food

• Agriculture

• Chemical

• Plastics

• Cement

• Mining

• Pulp & Paper (wood chips)

Applications

• Level/distance monitoring in heavy dust environments (cement, coal, aggregates, sand, plastics, powders, pellets)

• Process tank level and control

• Inventory level in storage tanks, bins, silos or other vessel

• Overflow prevention

Radar level sensors are the ideal solution for level measurement of liquids and solids when dealing with challenging environments such as vapour, temperature variations, extreme temperatures, extreme dust, wind, foam, ice or acoustic noise.
ABM offers various radar level sensors to match your application. Our radar sensors are a one echo sensor. The sensors automatically adjust their transmitted energy and receiver sensitivity to get the same amplitude of wanted echoes regardless of the distance to radar, which allows a very narrow radiation beam and very short blanking. This technique allows the receiver to detect only one echo from the measured media while all false echoes are pushed under the noise level and eliminated.
