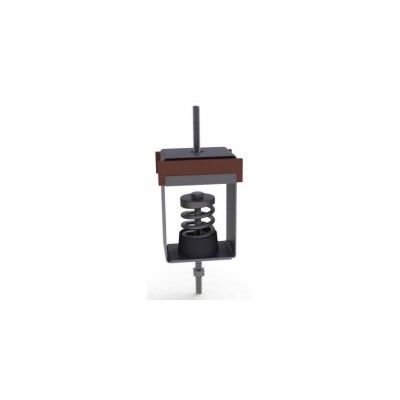

Vibro - Model SHR -Spring Hangers
Vibro-SHR is a combination of special rubber with metal spring for better vibration isolation of low and high frequency heard by the human ear.
Most popular related searches
- Steel frame with a painted finish or galvanised protection
- Steel spring in according to DIN standard with a galvanized finish.
- Steel cup to prevent spring movement.
- Rubber element (polyurethane foam with semi closed cells)
- Rod with safety nut (upon request)
- Ability of angular misalignment up to 30 degrees without contacting the metal frame
- Pre-loading kit (upon request)
APPLICATIONS
- Sound insulation Ceiling Hanger (false ceiling with plasterboard)
- Antivibration machine hanger
- Vibration isolation of pipes, airducts, loudspeakers etc.
DYNAMIC CHARACTERISTICS
- Natural frequency up to 3 Hz
- Static deflection about 25mm under maximum load
