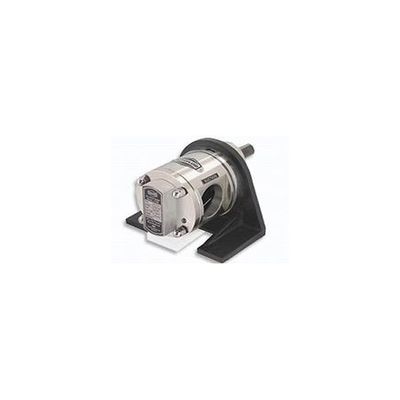

Care-Well - Model CWSS -SS Rotary Gear Pump
"Care-Well" gear pump type "CWSS" is a self-priming, bi-directional & positive displacement rotary pump. Model “CWSS” having all Stainless Steel (SS-316) investment casting. These pumps have SS-316 Nitride Gear & Shaft to give Long servicelife & trouble-free operation. Teflon coated DU bush & “GFO” pack Sealing gives zero Leakage. These pumps are easy cleanable, easy maintainable in three-piece construction. The back cover can simply be removed by four Dom-Nut. The right-angle mounting brackets facilities foot mounting of the pump on base plate with electric motor of appropriate ratings.
Part: Material For CWSS
Pump Body: CF8M [SS-316]
Front Cover: CF8M [SS-316]
Back Cover: CF8M [SS-316]
Gland Cover: CF8M [SS-316]
Packing: Teflon Sheet
Sealing: GFO Pack Teflon/ Mech. Seal
Bush Bearings: Teflon Coated "DU"
Mounting Bracket: C.I.Gr.-20 IS 210
Dom Nut: AISI [SS-316]
Rotor/Stator Shaft: AISI [SS-316]
R.H. & L.H. Gear: AISI [SS-316]
Key For Coupling: SS-304
- Pharmaceutical industries.
- Cosmetic industries.
- Dyes & resins.
- Dyeing and printing house.
- Ghee, butter, fruit pulps, vegetable soups.
- Special chemical and Acid industries.
- Chemical industries for corrosive viscose chemical.
- Self Priming Pump.
- Simple and Efficient Design.
- PTFE coated DU bush for smooth running and dry bearing condition.
- Low noise & Easy to maintain.
- Optionally available in double helical gear design.
- Bi-direction positive displacement pump.
- Established in three parts so that Clean & Maintain Easily.
- Capacity: UP TO 18 M3/HR.
- Size: 1/4" X 1/4" TO 2 1/2" X 2 1/2”.
- Speed: UP TO 1400 RPM.
- Pressure: Up TO 10 KG/CM2.
- M.O.C.: CF8M (SS-316)
