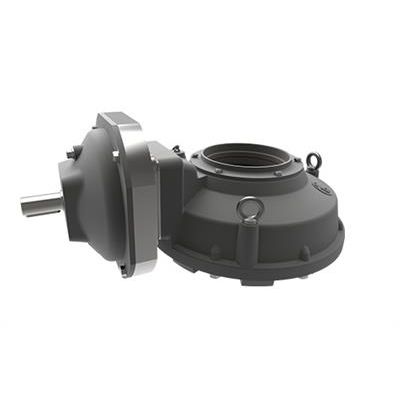

Mastergear - Model SS Bevel Range -Stainless Steel Bevel Gear Operators
FromRotork plc
Heavy-duty stainless steel 316 housing multi-turn gearboxes suitable for the most demanding manual and motorised applications. Suitable for cast and fabricated sluice gates, gate valves, globe and pinch valves.
Most popular related searches
position indicator
pinch valve
gate valve
sluice gate
sluice gate valve
globe valve
sluice valve
sluice
temperature indicator
- Torque range up to 2,300 Nm (1,696 lbf.ft).
- Thrust range up to 330 kN (74,200 lbf).
- 3 Sizes. Ratios from 4.5:1 to 20.25:1.
- Stainless steel 316 input shaft
- Thrust / non-thrust taking versions
- IP67 / IP68
- Options: Spring-loaded temperature compensators. Various position indicators. High and low temperature. All types of environment.
