Linn - Model MAG-BG -Stainless Steel Self-Priming Impeller Pump for Slow Running
The main feature of these pumps is their strenght, due to the process throught which they are manufactured, that is to say stainless steel casting. The total absence of junctions or welding give to the material a high resistance to abrasion and corrosion. They feature thick walls (4-5 mm) and smooth surface. Mag pumps are suitable for whatever industrial sector and they are suitable for trasferring liquids gently without emulsifyng the product. Instant priming up to 4 - 5 meters. Pumping works in both directions of rotation. Suitable for thick liquids containing floating bodies. Mechanical seal is supplied according to the product to be pumped. The pumps are coupled to the electric motor in compliance with CE standard.
Flexible Impellers
In Neoprene, Nitrile Rubber, Nitrile Rubber AL, Dutral or Silicone according to the product to be pumped.
The impellers are temperature resistant up 100° C.
Example of liquids suitable for transport
Wine and concentrated must, Fruit juice, Tomato sauce, Vegetable oils, grease, Milk, condensed milk, Whey, yogurt, cream
Jelly, honey, mustard, molasses, Flavours, beer, Extracts and syrups, Vinegar, Jam, Brine, Skimming yeast from fermentations
NOTE: do not pump petroline, thinners, solvents or aggressive acids .

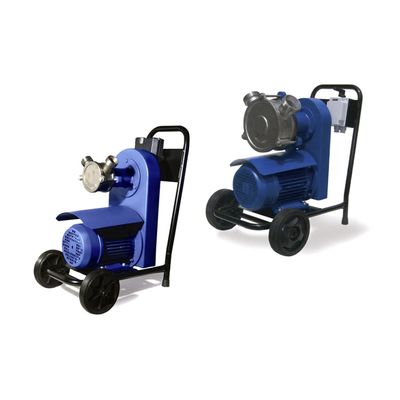

Low RPM electric pump with truck and reversing switch, 10 meters wire. Instant priming up to 2 meters.
Upon request available with two speeds motor. Instant priming up to 4/5 meters.
Mechanical seal variations:
- Carbon-ceramic·NBR
- Carbon-ceramic·FPM
- Carbon-chrome steel·NBR (standard)
- Carbon-chrome steel·FPM
- silicon carbide-silicon carbide-NBR
