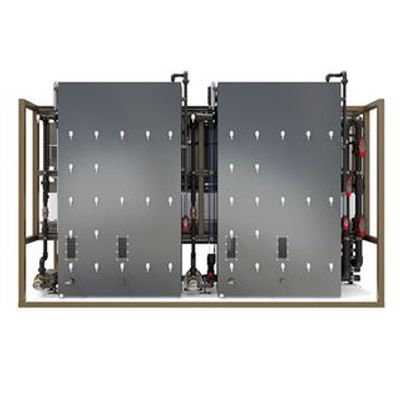

Intuitech - Standard Ozonation Pilot Plants

• Total Flow Rate  1.0…8.0 gpm (3.8...30.3 L/min)
• Contactors  5 @ 13.9 gal (52.6 L)
• Contactor Diameter  6" (152 mm)
• Contactor Height  131" (3.32 m)
• Ozone Delivery  0.13...0.58 lb/day (0.25...11 g/h)
• Ozone Concentration  3-8% by weight
• Dimensions  119” (3.02 m) L x 34” (0.86 m) W x 141” (3.58 m) H
• Dry Weight  1,090 lbs. (494 kg)
• Electrical Requirements  1 phase, 13.9 A max. @ 120 VAC
• Monitored Parameters  Feed Flow, Ozone Feed Gas, Ozone Off Gas, Dissolved Ozone, Ozone Feed Gas Flow, Ambient Ozone, Ozone Pressure, Ozone Temperature

*based on standard model as shown. Some options available. Please contact our sales team for more information.
