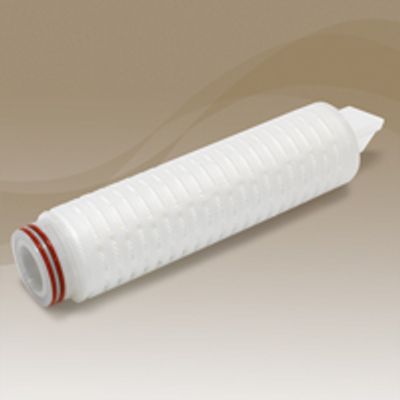

Shelco MicroVantage - Model MVS Series -Sterilizing Grade Polyethersulfone Membrane Filter Cartridge
FromShelco Filters
Sterilizing Grade Polyethersulfone Membrane Filter Cartridge. 0.2 micron absolute dual layered polyethersulfone (PES) membrane. 100% integrity tested. Optimized for retention and excellent flow rates. Biologically inert and low protein binding. Heavy-duty components protects pleated media and strengthens structural stability. Manufactured in our state-of-the-art clean room environment for high purity and bio-pharmaceutical applications. Complies with the Food & Drug Administration’s CFR criteria for food & beverage contact. Meets USP Class VI Biological Test for plastics. Available in a variety of end cap configurations to fit most filter housings. Thermal bonded and produced in standard lengths up to 40 inches.
Most popular related searches
polyethersulfone membrane filtration cartridge
membrane filtration cartridge
filter cartridge
membrane filtration
cleanroom environment
membrane cartridge filter
filter membrane
biological testing
cleanroom
filter housing
- 0.2 micron absolute dual layered polyethersulfone (PES) membrane
- 100% integrity tested
- Optimized for retention and excellent flow rates
- Biologically inert and low protein binding
- Heavy-duty components protects pleated media and strengthens structural stability
- Manufactured in our state-of-the-art clean room environment for high purity and bio-pharmaceutical applications
- Complies with the Food & Drug Administration’s CFR criteria for food & beverage contact
- Meets USP Class VI Biological Test for plastics
- Available in a variety of end cap configurations to fit most filter housings
- Thermal bonded and produced in standard lengths up to 40 inches
- WFI & CIP Water
- Diagnostics
- Buffer Solutions
- Parenteral Solutions
- Vaccines
- Pore Sizes
- 0.2 microns absolute retention validated
- Nominal Lengths
- 10" (25.4 cm), 20" (50.8 cm), 30" (76.2 cm), 40" (101.6 cm)
- Outside Diameter
- 2.67" (6.78 cm)
- Media Surface Area
- 7.0 sq.ft. (0.65 m²) per 10 inches filter length
- Gaskets/O-rings
- Silicone, EPR, Viton, Buna, Teflon Encapsulated Viton,
- Teflon Encapsulated Silicone
- Materials of Construction
- Filter Media: Polyethersulfone Membrane
- Outer Cage Polypropylene
- Inner Core: Polypropylene
- End caps: Polypropylene
- Support Layers: Polypropylene
- Reinforcing Ring: Encapsulated 316 SS
- Maximum Operating Temperature
- 180˚F ( 82˚C) @ 10 psid (0.69 bard) in water
- Recommended Change-out Differential Pressure
- 35 psid (2.4 bar)
- Maximum Differential Pressure
- Forward: 70 psid @ 70˚F (4.8 bar @ 21˚ C)
- 40 psid @ 176˚F (2.7 bar @ 80˚ C)
- Reverse: 40 psid @ 70˚F (2.7 bar @ 21˚ C)
- Sanitization and Sterilization
- Hot water at 194˚F (90˚C) @ max 3 psid for 30 minutes
- In-line steam at 275˚F (135˚C) @ max 5 psid for 30 minutes
- Autoclavable at 257˚F (125˚C) for 30 minutes
- Chemical Sanitization
- Cartridges may also be chemically sanitized in place using common sanitizing agents
