- Model GSL60/GSL80 - Electric Submersible Sludge Pumps

From

0

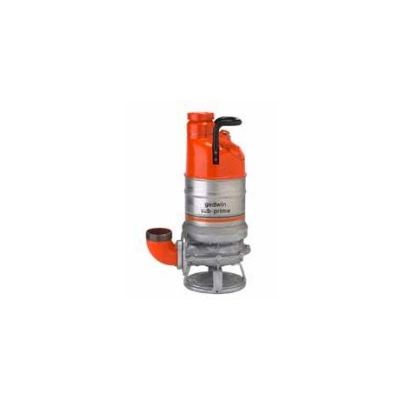

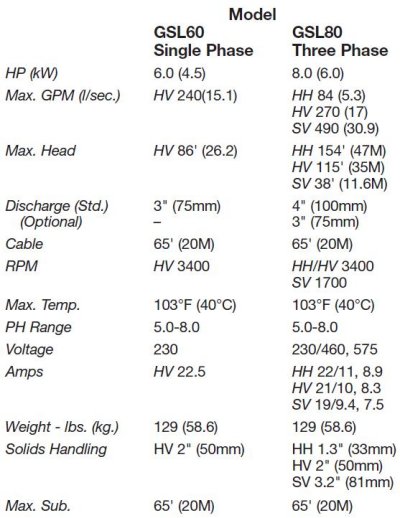

The line of Godwin Sub-Prime GSL electric submersible pumps is designed for large sludge or dewatering applications. The GSL60 model is capable of maximum flow rates from 240 gpm (15.1 l/sec) and discharge heads to 85 feet (25.9M). The GSL80 model is capable of maximum flow rates from 84 to 490 gpm (5.3 to 30.9 l/sec) and discharge heads to 154 feet (47M). Like the dewatering models in the Sub-Prime line, these submersible sludge pumps are suited to tough construction, mining and industrial applications. The design features a side discharge that handles solids up to 3.2' (81mm) in diameter* and rugged construction for long life, including a cast chromium steel impeller and heavy duty polyurethane-lined volute. Other benefits include tandem mechanical seals for dry running and extra protection against leakage, and a dual voltage junction chamber for convenient changeover in the field.

  • Side discharge design handles maximum solid sizes from 1.3' to 3.2' (33mm to 81mm) in diameter
  • Oversized power cable
  • Dual voltage and dual phase motor
  • High performance submersible motor
  • Oversized, heavy duty ball bearings
  • Tandem mechanical seals – primary seal is Silicon Carbide on Silicon Carbide
  • Cast Chromium Steel vortex impeller and heavy duty replaceable polyurethane-lined volute
  • Lightweight aluminum and corrosion resistant stainless steel cooling jacket
  • Dry running capabilities
  • Optional manual and automatic control panels available
