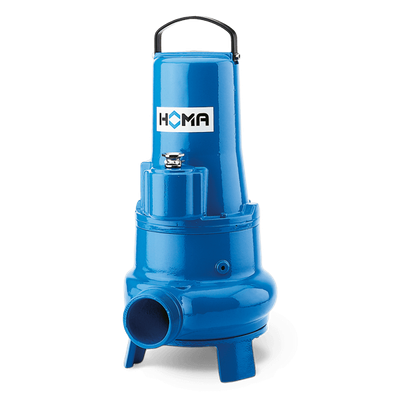

HOMA - Model TP50 -Submersible Pumps for Drainage Water and Sewage
Cast iron submersible pumps with single channel or vortex impeller. Spherical clearance: 50 - 65 mm. Discharge size: G2 1/2. Max. head: 7,5 - 31,6 m. Max. flow: 28,8 - 72,9 m³/h. Motor power P1: 1,0 - 5,2 kW. Motor power P2: 1,0 - 4,4 kW.
Application
Homa TP50 series pumps are suitable for pumping drainage water or waste water. With 50 mm spherical clearance they are able to pump liquids with larger suspended solids like fibres, textiles etc. They are used for various applications in public and private sector, trade and industry.
Installation
Transportable or permanent. Models with float switch control for automatic pump operation, depending on liquid level in the sump.
Materials
Motor housing, Impeller, pump housing (Gast iron EN-GJL-250), Rotor shaft, screws (Stainless steel), Mechanical seal (Silicon-carbide), Seal kit (Perbonane), TP 50 M: Wear Ring (Bronze).
Pumped liquid
Clear water and drainage water, sewage containing soft solids. Max. liquid temperature: 40°C short term up to 60°C.
Motor
Fully submersible, pressure tight electric motor. Insulation class H. Degree of protection IP 68. Equipped with thermal sensor in the winding as standard.
