Masdaf - Model ENDURO - Submersible ...

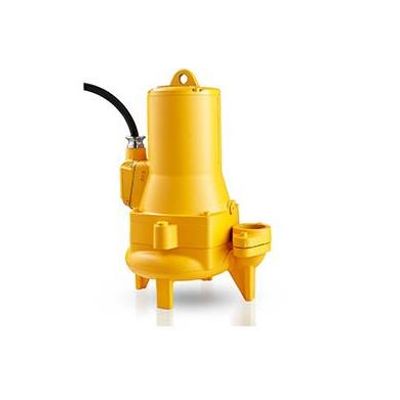

Masdaf - Model ENDURO -Submersible Sewage and Wastewater Pumps

FromMAS DAF MAKINA SAN. A.S.

SHARE

Pump is fully protected with a protection relay against possible electric motor overheat, overload and phase failure problems. H70RN-F class rubber coated cables, high resistance to corrosiveness of sewage water. If the cable gland seal fails, the cable gland sealed with resin prevents any possible leakage into the motor housing. Single and double row bearings ensure reliable operation by carrying long loads on the pump. There is a double mechanical seal system which is positioned in an oil bath as tandem for optimum operational safety.

Most popular related searches

raw sewage treatment

mechanical sealing system

sewage treatment plant

submersible pump

submersible sewage wastewater pump

wastewater pumping

It can pump different kinds of wastewater by single vane, double vane or free-vortex impeller type.
High hydraulic efficiency is obtained with electrical motor that has IP 68 protection and IE 2 or IE3 (optional) efficiency class.
Watertight cable entry system prevents capillary action and protects against humidity; it reduces maintenance costs.
Stuffing box in the helical structure, by keeping solid particles contained in the waste water away from the mechanical seal, protects the mechanical seal and provides a long working life.
In pump, an electrode system is used in case of water leakage caused by worn out mechanical seal or any other reason.

Compression Flanges: DN 50 – DN 300 (PN 10- PN 16)
Impeller diameters: ø140 – ø360 mm
Flow: 1600 m3/h’ e kadar
Discharge head: 45m’ ye kadar
Speed: 3600 d/dk’ ya kadar
Operating temperature: 40 ºC’ ye kadar
Body Pressure (Pmax): 10 bar

Transportation of domestic and industrial raw sewage

Sewage treatment plant
Transportation of liquids containing mud and solid parts
Transportation of factory waste fluids
Liquids containing fibrous particles and other applications
