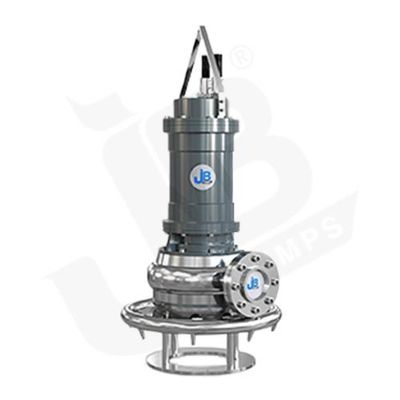

JB-Pumps - Model JBSL Series -Submersible Slurry Pumps
Submersible slurry pumps are pumps designed to handle abrasive and high-density slurries in submerged conditions. These pumps are designed to operate underwater, with the motor and pump unit submerged in the slurry they are pumping. The submersion of the pump unit ensures that the slurry is kept contained and prevents it from leaking into the surrounding environment.
JB Pumps India Pvt. Ltd. is leading Manufacturer and Supplier of Submersible Slurry Pump. We manufacture Submersible Pumps for various industrial requirements.
The selection of submersible pumps can be done based on several specifications. Choosing the first and leading submersible pumps mainly depends on type, application, and after that, the utmost flow of discharge must be decided. Submersible Sludge & Slurry Pumps by JB Pumps has great efficiency in handling the slurry. It can handle both solid and liquid material.
JBSL series is designed to handle major heavy duty slurry applications across a very wide range. The excellent solid handling capability of our channel-impeller pumps guarantees maximum operating time and substantial reductions in maintenance costs caused by pump jamming or clogging and performs very efficient operation.
Submersible Slurry Pumps Material of Construction
- Motor Body: C.I./Alu.Alloy/SS
- Pump Casing: C.I/Alu/S.S 304/S.S 316
- Impeller: CI , Aluminium, S.S 304 , S.S 316
- Shaft: S.S 410 / S.S 431
- Mech. Seal: Double Type: TC vs TC(Pump Side)/SIC vs SIC
- Bearing: Deep Groove Ball Bearing (SKP) (Top) Double Row Angular Contact (Bottom)
Submersible slurry pumps are designed to move slurry, sand, and other materials in the dredging, quarrying, and mining industries. Our non-clogging slurry pumps are built to handle the most challenging solids with the highest efficiency.
At JB Pumps India Pvt. Ltd., we manufacture high-quality submersible slurry pumps using advanced technology. Our pumps hold high pumping capacity and the ability to transfer abrasive media, like sand, with high solid content.
Slurry pumps use the kinetic energy of the impeller to increase the flow and pressure of the fluid. Hereafter, the liquid enters the impeller inlet and moves through each stage. The liquid moves at high pressure and is forced out by centrifugal action from the volute discharge outlet.
- Motor: Four Pole Continuous Duty Squirrel Cage Submersible Type Induction Motor
- Insulation Class: F
- Protection: IP – 68 / Thermal Over Load / Moisture
- Cable: PVC Insulated Double Sheathed Copper Conductor Flexible
- Range: 2 HP to 100 HP
- RPM: 1450
- Size: 2 inch to 8 inch
- Connection: DoL or Star Delta
- Excellent Solid Handling Capability
- High-Quality Sealing To Prevent Leakage
- Durable Bearings To Withstand Shocks And Overloads
- Portable & Lightweight Construction
- Non-Clogging Design
- Superior Wear & Corrosion Resistance
- Noiseless Operation
- Can easily handle highly corrosive slurries
- Occupy less space as it can directly operate in the slurry
- The portable & lightweight design makes it more compact and quick to install
- Produces less noise and does the silent operation
- Built with robust material hence highly durable
- Wear and tear resistant from abrasive materials
- Consume low energy making it energy efficient and reliable
- Low maintenance costs and a longer service life
- The self-priming mechanism reduces the risk of pump damage caused by dry running
