Fusion - Model 101A -Syringe Pump
FromChemyx Inc

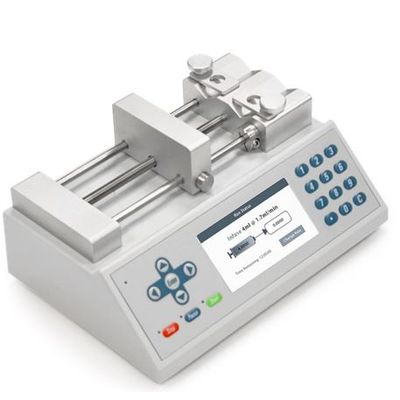

Chemyx Fusion 101A is a programmable infusion-only syringe pump that performs the most basic precision dispensing activities. This syringe pump comes with standard infuse mode and multi-step programmable mode. It also has an RS232 and USB port that allows the pump to be controlled by a computer. The programmable infusion pump can be used for mass spectrometry calibration, synthetic chemistry, electro-spinning, drug infusion, and ESI microliter injections. The upgrade of this model is Fusion100-X.
Most popular related searches
syringe pump
infuse only syringe pump
mass spectrometry calibration
hybrid stepper motor
mass spectrometry
infusion syringe pump
programmable syringe pump
glass microsyringe
microsyringe
pump controller
- Graphic LCD interface
- RS232 port for computer control
- Integrated syringe dimensions library
- Selectable rate units: μl/hr, μl/min, ml/hr, ml/min
- Stall detection with audible alarm
- Silent operation
- Accommodates any syringe: glass, plastic, and microsyringes
- 1-Year Limited* Warranty
- Mode: Infuse Only
- Accuracy: ± < 0.35%
- Reproducibility: ± < 0.05%
- Syringe Size (Min/Max): 10µL to 50mL
- Syringe Type: Plastic and Glass
- Syringe Flow Rates: See Syringe Library for Min & Max Flow Rates
- Minimum Flow Rate: 0.0001 µL/min (with 0.5µL syringe)
- Maximum Flow Rate: 38 mL/min (with 30mL syringe)
- Linear Force: 26lb (11.8kg)
- Display: 4.3 inch LCD Screen
- Connectivity: RS232 and USB-B Ports
- System Dimensions: 9.5 x 6.8 x 4.4 inches (24 x 17 x 11 cm)
- Power: 110/220 VAC
- Weight: 7lbs (3kg)
- Motor Drive: 0.9° Stepper Motor with Micro-stepping
- Step Resolution: 0.198 µm/step
- Operating Temperature: 4°C to 40°C (40°F to 104°F)
- Regulatory Compliance: CE, RoHS, REACH, FCC, IC
