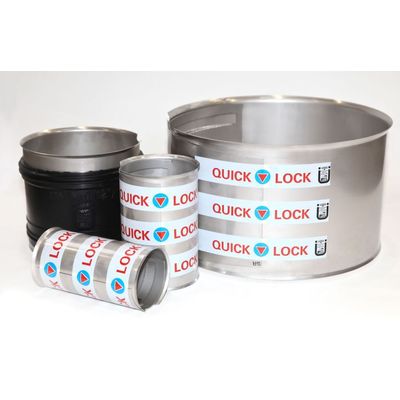

Quick-Lock - Model LEM -System for Connecting Hose Liners
The new Quick-Lock liner end cuff is a system for connection hose lines to pipes and to structures. The ring room between the liner and the old pip is sealed in long-lasting fashion, and the liner end is protected against the mechanical influences of high-pressure flushing.
Most popular related searches
The new Quick-Lock mini liner end sleeve in nominal sizes DN 100, DN 125 and DN 150 is a system for connecting house connection liners . The ring room between the liner and the old pip is sealed in long-lasting fashion, and the liner end is protected against the mechanical influences of high-pressure flushing.
- The functioning of the liner end cuff is the same as that of the proven Quick-Lock system.
- The EPDM rubber seal was conceived so that, in the respective nominal size, all customary liner wall strengths (GFK) can be compensated for.
- To transfer the Quick-Lock liner end cuffs, only one set of air-pressure-controlled cutting tools, a transfer bladder adjusted for the system, or, in accessible profiles, the Quick-Lock BIG transfer tool is required.
- simple transfer procedure
- long-lasting materials
- approved for construction
- Tight and resistant to HD flushing, IKT tested (DN 150 – DN 600)
- Compensation of shrink characteristics of GFK inliners
